#391: Re: Macs rally 206 project.. Rally results Author: Seabook, Posted: Tue Nov 22, 2011 12:08 pm ---- i was wondering is this the one you use on track?
#392: Re: Macs rally 206 project.. Rally results Author: Mikey2uk, Location: StevenagePosted: Tue Nov 22, 2011 12:25 pm ---- Dont think it is as Mac's tyres look very different to those
#393: Re: Macs rally 206 project.. Rally results Author: macj, Location: EssexPosted: Tue Nov 22, 2011 12:36 pm ---- I dont know what mine are without looking..........dashes off to shed
#394: Re: Macs rally 206 project.. Rally results Author: macj, Location: EssexPosted: Tue Nov 22, 2011 12:44 pm ---- they were these.... sorry its in a funny language
#395: Re: Macs rally 206 project.. Rally results Author: =ZiAn=, Location: SloveniaPosted: Tue Nov 22, 2011 1:17 pm ---- I'm rarely on here lately so I'm a bit late but still, thanks for the graph
p.s. the car looks great on track

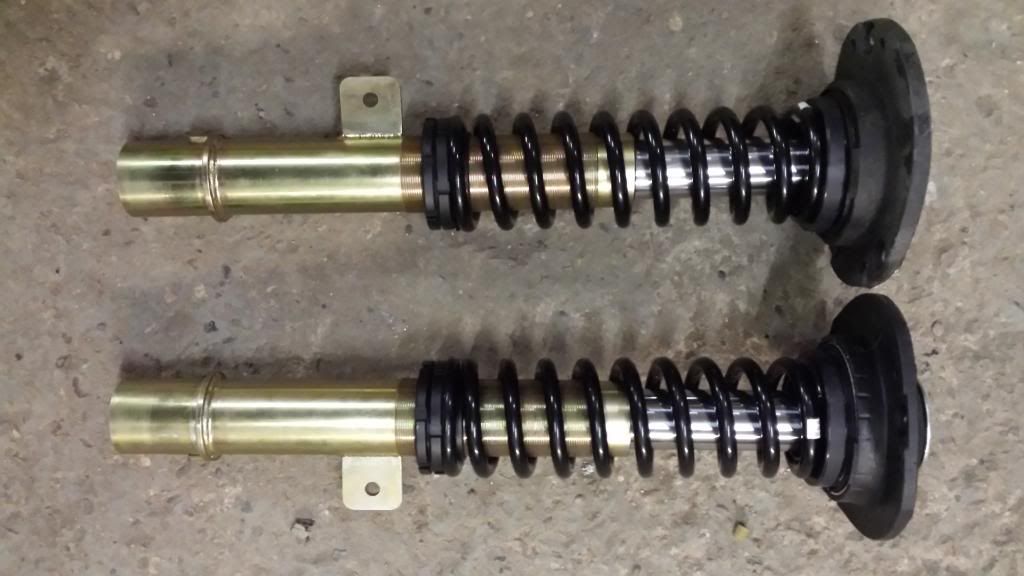

#396: Re: Macs rally 206 project.. Author: macj, Location: EssexPosted: Sun Dec 22, 2013 7:40 am ---- Thought I would update with new suspension mods
As the previous Gaz system was too weak I opted for these custom built monotubes.....
#397: Re: Macs rally 206 project.. Author: macj, Location: EssexPosted: Sat Feb 01, 2014 8:27 am ---- We are not planning to defend our title this season as we have decided to upgrade the car again and this would cost in excess of 9k.... we cant compete and upgrade. But the upgrade will be worth it...

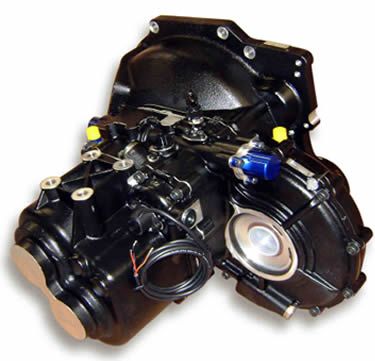

First plan 6-SPEED SEQUENTIAL FRONT WHEEL DRIVE GEARBOX
REFERENCE: ST82-14
TECHNICAL DETAILS:
?6 speed dog ring gearbox with sequential gearing
? Maxi engine torque : 420 Nm (310 lbs/ft)
?Various final drives available
?Wide range of ratios available
?LSD with a large choice of ramp angles and preload adjustment
?Specific alumninium casings
?Specific clutch shaft
?Splash lubrication
?Reverse cable
?Potentiometer for gear display
?Shifting time improved
?Possibility to integrate a paddle shift system
?Cut-off sensor
?Weight: 35kg
OPTIONAL EXTRAS:
?Bell housing
?Gear lever
?Gear display
?Output flanges or driven tripod
?Oil pump integrated into the gearbox
?Paddle-shift system
#398: Re: Macs rally 206 project..New upgrade plans Author: usher, Location: northallertonPosted: Sat Feb 01, 2014 9:58 am ---- very very nice but 9k for a gear box is a little pricey aint it,
#399: Re: Macs rally 206 project..New upgrade plans Author: macj, Location: EssexPosted: Sat Feb 01, 2014 10:42 am ----
usher wrote:
very very nice but 9k for a gear box is a little pricey aint it,
Saves 1/10th second per gearchange over an H pattern box and no missed gear shifts.... only drawback is that its tough to find 1st if you stall or spin
Grin factor....... priceless
#400: Re: Macs rally 206 project..New upgrade plans Author: usher, Location: northallertonPosted: Sat Feb 01, 2014 11:57 am ---- i can imagin especially hearing the wine from it if it does, how much has the car cost start to finish so far? i know the engine cost a little lol
#401: Re: Macs rally 206 project..New upgrade plans Author: Harry, Location: StaffordPosted: Sat Feb 01, 2014 12:43 pm ---- That's what I always thought - goodluck starting again if you somehow spin and stall in 6th!
Does look very tasty I do love the gear change action of them.
#402: Re: Macs rally 206 project..New upgrade plans Author: macj, Location: EssexPosted: Sat Feb 01, 2014 1:13 pm ----
usher wrote:
i can imagin especially hearing the wine from it if it does, how much has the car cost start to finish so far? i know the engine cost a little lol
I have not kept accurate tabs on the cost... Bear in mind I blew up the first engine on a tarmac event and broke a gearbox on a forest event.
Approx total to date, without both repairs, about 11k
That's engine, box, suspension, mapping, rolling shell and wheels/tyres.
#403: Re: Macs rally 206 project..New upgrade plans Author: macj, Location: EssexPosted: Thu Feb 20, 2014 5:48 am ---- Spoke to charlie at CTM Performance Engineering this morning. He wants the engine out for a little freshen up..... and a little more power. She will be getting some cams this time as the sequential box will use the power further up the range.
He seems to think we could end up with a monster engine after the last build power figures...... should be good
All in time for running in at FCS:)
#404: Re: Macs rally 206 project..New upgrade plans Author: usher, Location: northallertonPosted: Fri Feb 21, 2014 12:15 am ---- how much more can be squeezed now lol thought it was near enough at the max for the gti engine
#405: Re: Macs rally 206 project..New upgrade plans Author: macj, Location: EssexPosted: Fri Feb 21, 2014 12:27 am ---- I have no idea...... leaving it in his capable hands
