ushers track project fully stripped and trimmed
-> Project Cars

#1: ushers track project fully stripped and trimmed Author: usher, Location: northallerton PostPosted: Sat Mar 26, 2011 3:21 pm
    ----
here is my 206 gti
i got the car with 31k on the clock full service history for £3.200
here is what it looked like the day i got it







it was completly standard not even a spoiler

my first mod was some ultra rear lights then it snowballed with already having an ok sound system steering wheel and alloys

over the last few years i have done the following

Exterior
SP arch extensions
180 rear bumper black exhaust trim
GTI Spoiler
Phase 2 boot strip
Zunsport grill
Gloss black bump strips
Gloss black pillar covers
Badgless grill
Black led indicators
Black vinyl roof
Window tints
Seat cupra spliter
Rear tinted fog and 3rd brake light
Valo smoked rear lights
Morette headlights
flyeye headlight tint
passanger fog as cold air feed

engine
Piper cams re-profile
Piper cam followers
Raceland manifold
Sports CAT
Cat back exhaust system (jetex/simons) twin exit
Port and polished throttle body
Ekotech valve
Pipercross induction kit(cold air feed from fog)
RS tuning remap
Colour coded and smoothed rocker cover


chassis
17” wolfrace street octane alloys colour coded
eibach lowerign springs
weitech dampers
Torsion bar lowered to match
180 ARB
Bilstein rear dampers
Brembo calipers with 180 discs
15mm Spacers


Interior
SP car mats
Momo jet steering wheel
2x Edge 12” subwoofers
Edge amp 4x75
4x component in parcel shelf
vibe wiring
Sound proofing
Boss amp 2x250
Colour coded centre console and air vents
Interior carpet changed to black

i will let some pics do the talking














the wheels were refurbed by myself and my G/F here are some pics












it was not a cheap as i was hoping (£200) but well worth it


work i have been doing this last week or 2 is stripping out the interior
before i started



and stripped



the reason for this was to run amp and speaker wires through the car under the carpet, im planning 3 in each front door card bigger ones in the rear door cards 2x12in subs in the boot 10in in the passanger footwell hopefully, also 4 in the parcel shelf i just need to finish the fibreglassing, with having our 2nd baby on the way in the next few weeks this may not be finished for a while lol but atleast all the wiring is done
while i was on i changed the carpet from grey to black which looks 100x better

wires







i will have more pics tomorrow as i will be finishing off the boot, i have put an mdf floor down with carpet underlay and carpet (black) ontop as the origional carpets were looking tatty, as a nice side effect it reduced the noise from the exhaust alot.

update
finished off neatening the wires got them set up for one amp as not got the speaker holes for the other amps yet, also put the black facia round the hu








Last edited by usher on Fri Apr 18, 2014 4:19 pm; edited 28 times in total

#2: Re: ushers project (WIP) Author: Addaz, Location: Suffolk PostPosted: Sat Mar 26, 2011 3:24 pm
    ----
Looks nice mate

Just got one question about the audio

Please do not tell me that live wire is your main wire to all 4 amplifiers at a guess

#3: Re: ushers project (WIP) Author: robdob, Location: oxford PostPosted: Sat Mar 26, 2011 3:52 pm
    ----
Lush alloys, how long did they take? Icing on the exterior imo Smile

#4: Re: ushers project (WIP) Author: usher, Location: northallerton PostPosted: Sat Mar 26, 2011 4:10 pm
    ----
they took a month but that was with working could have done them in 2 weeks with all day on them,

would that be a problem having 4 amps 75rms per chanel on one 4gauge wire with a splitter using 8 gauge

#5: Re: ushers project (WIP) Author: Addaz, Location: Suffolk PostPosted: Sat Mar 26, 2011 5:56 pm
    ----
usher wrote:
they took a month but that was with working could have done them in 2 weeks with all day on them,

would that be a problem having 4 amps 75rms per chanel on one 4gauge wire with a splitter using 8 gauge

Please get 0 gauge instead, 4 gauge off 4 amps is a fire hazard IMO

Plus you dont need 6 door speakers, it will completely over the power the rear

#6: Re: ushers project (WIP) Author: usher, Location: northallerton PostPosted: Sat Mar 26, 2011 6:30 pm
    ----
im not sat in the rear lol

#7: Re: ushers project (WIP) Author: Rob2859, Location: Halifax PostPosted: Sat Mar 26, 2011 6:31 pm
    ----
very nice car mate. Not bad for £3.20 Very Happy

#8: Re: ushers project (WIP) Author: Addaz, Location: Suffolk PostPosted: Sat Mar 26, 2011 6:32 pm
    ----
usher wrote:
im not sat in the rear lol

But the vocals will be to much for just two 12's

4 will be ample till 3krms

#9: Re: ushers project (WIP) Author: usher, Location: northallerton PostPosted: Sat Mar 26, 2011 6:34 pm
    ----
Rob2859 wrote:
very nice car mate. Not bad for £3.20 Very Happy

lol

#10: Re: ushers project (WIP) Author: usher, Location: northallerton PostPosted: Sat Mar 26, 2011 6:36 pm
    ----
one of the speakers wont be doing much in the door card anyway as it will be between the origional speaker and the pocket at the back of the door card more for looks

#11: Re: ushers project (WIP) Author: Addaz, Location: Suffolk PostPosted: Sat Mar 26, 2011 6:37 pm
    ----
Fair enough mate

Good luck anyways Smile

#12: Re: ushers project (WIP) Author: usher, Location: northallerton PostPosted: Sat Mar 26, 2011 6:37 pm
    ----
thanks for the advice will keep an eye on the power cable

#13: Re: ushers project (WIP) Author: Resolutionary, Location: South West London PostPosted: Sun Mar 27, 2011 11:49 am
    ----
Very nice project mate, like the wheels a lot.

#14: Re: ushers project (WIP) Author: usher, Location: northallerton PostPosted: Mon Apr 04, 2011 10:59 am
    ----
little update getting cams fitted tomorrow
will let you know how it feels re-map wont be for a while

#15: Re: ushers project (WIP) Author: usher, Location: northallerton PostPosted: Thu Apr 07, 2011 2:43 pm
    ----
well it would have gone to plan if my cam followers wernt nackered so i am currently waiting for some new ones from piper to arrive then i can get the car back togeher, also on removing the cam belt i was told there was a amall nut which had been rubbing on the belt trapped under the cover so its a good job i was getting it done
they also noticed the aux bel tensioner is warn but should be ok for a while
hopefully i will have the car back sometime next week

on a plus side me and my gf have had a baby boy on tues both doing well, baby no2 and last lol

#16: Re: ushers project (WIP) Author: usher, Location: northallerton PostPosted: Mon Apr 11, 2011 4:12 am
    ----
yet more bad news lol the cam followers came but for a vw so waiting for the right ones to come
bit of a newsense as i paid for next day delivery

#17: Re: ushers project (WIP) Author: Quarmbo, Location: Bristol & Leicester PostPosted: Fri Apr 15, 2011 6:09 am
    ----
And ask for the delivery charge back then!

#18: Re: ushers project (WIP) Author: Callum206, Location: West Sussex PostPosted: Fri Apr 15, 2011 11:52 am
    ----
Looking good man keep it up

#19: Re: ushers project (WIP) Author: craigy00craig, Location: surrey PostPosted: Fri Apr 15, 2011 12:36 pm
    ----
ive got the same sub, but only one. Looks really nice over all.

#20: Re: ushers project (WIP) Author: sam-c, Location: Uni: Kent Home: Scunthorpe PostPosted: Fri Apr 15, 2011 12:44 pm
    ----
i could og on all day about the problems with your proposed audio plans but it seems my advice would be falling on deaf ears so i wont waste my time

however, in the interest of safety as said use 0 guage and then a fused distribution block into 4 x 4guage and i would also use an unfused distribution block in the same way for the ground wires

#21: Re: ushers project (WIP) Author: usher, Location: northallerton PostPosted: Sun Apr 17, 2011 1:08 pm
    ----
didnt ask for money back as they sent the new ones 24h, should be done tomorrow hopefully problem is now there fitting it inbetween other car book ins

as for the power wire i will be ready for the i told you so moment if anything does happen for this year all i will have in is one amp and the 2 12s as i have not finished the door cards parcel shelf etc

#22: Re: ushers project (WIP) Author: usher, Location: northallerton PostPosted: Wed Apr 20, 2011 1:25 pm
    ----
got the car back yesterday finally after a month of problems
gotta be gentle for a few hundred miles as yet so cant comment on the performance but the car is running sweet now only problem is there is some knocking as though something is loose / tapping when trying to start the car but not when running so will take it back to see what they think it could be but £160 for timing belt, water pump, cams, followers, aux belt and handbrake cables you cant go wrong also they had the car for 2weeks while waiting for parts etc

#23: Re: ushers project (WIP) Author: usher, Location: northallerton PostPosted: Fri Apr 22, 2011 6:50 am
    ----
managed to do 200 miles since tues lol, had a blast today and noticed a slight increase in power in the region 3-5k sure they will work better with a re-map

#24: Re: ushers project (WIP) Author: usher, Location: northallerton PostPosted: Mon Apr 25, 2011 3:20 pm
    ----
gave the car its 1st clean of the year (hangs head in shame) so thought i would try using my new machine polisher

how bad it was









i jet washed then hand washed to make sure i hade a good clean base
then went on to clean off all the tar that had built up







after this i set out claying the car ready for polishing
this is the result













i used auto glym SRP with the polisher and intensive tar remover and maguires clay

#25: Re: ushers project (WIP) cleaned update pg2 Author: Ali_H, Location: Chichester, Sussex PostPosted: Mon Apr 25, 2011 3:28 pm
    ----
Thought your tyre was flat in the last one lol. And some of your photos are upside down Laughing

#26: Re: ushers project (WIP) cleaned update pg2 Author: usher, Location: northallerton PostPosted: Tue Apr 26, 2011 11:45 am
    ----
lol i tried to get them the right way round but wouldnt do it
does look flat
next plan is to wax it and detail more ie door hinges and start on the engine bay

#27: Re: ushers project (WIP) REMAPPED Author: usher, Location: northallerton PostPosted: Mon May 23, 2011 8:30 am
    ----
just got back from rs tuning where i had the car remapped and what a difference i now have a smooth power curve with correct fuel to air ration and gained 10bhp

overall im running near as damit 150bhp and the flywheel he tried to get it up to 150 but it wouldnt do it
graphs:-

before and after tacho was out though



before and after with fuel ratio again tacho is out my fueling was way out



after torque and hp one of the last runs did get 149.7 i think



after wheel power and fuel ratio


#28: Re: ushers project (WIP) REMAPPED Author: usher, Location: northallerton PostPosted: Fri Aug 26, 2011 2:26 pm
    ----
bit late but this is what i got done before the french car show
morretts fitted after owning them for over a year lol






engine bay cleaned

before



after











then after these pics i decided to re paint the covers black as they were looking a bit rough

while at FCS i went on the track and cooked my brakes the discs were purple for months, stopped the anoying squeel you get from brombos though

so next on the list is the 406 master cylinder and braided hoses followed by some bigger discs probably have to be custom made not sure yet, after that next year im not going to FCS but the year after i am with hopefully way better suspension set up thicker rear ARB torsion bars and adjustable dampers

Last edited by usher on Fri Mar 09, 2012 6:55 am; edited 3 times in total

#29: Re: ushers project cleaned bay and moretts fitted Author: Katie206, Location: Plymouth PostPosted: Sat Aug 27, 2011 7:35 am
    ----
i've fallen in love with the colour! i want!! the gloss black trims compliment it really well Smile good work Thumbs Up

#30: Re: ushers project cleaned bay and moretts fitted Author: usher, Location: northallerton PostPosted: Sun Aug 28, 2011 1:34 pm
    ----
thanks i cant get enough of the colour

forgot to mention i have added 2 12"subs with 2 amps built in temp for now
also got my parcel shelf painted even though it needs more filling









#31: Re: ushers project cleaned bay and moretts fitted Author: LeeMaddern, Location: Scunthorpe PostPosted: Mon Sep 05, 2011 12:35 pm
    ----
that was a good read Smile dont want to sound like a p***k, but.... wont all that audio equipment be a little heavy, making all the money on new cams pointless.

#32: Re: ushers project cleaned bay and moretts fitted Author: 00budham00, Location: Ips PostPosted: Mon Sep 05, 2011 2:39 pm
    ----
You felting that parcel shelf?

#33: Re: ushers project cleaned bay and moretts fitted Author: usher, Location: northallerton PostPosted: Tue Sep 06, 2011 7:38 am
    ----
planning on filling it all smooth and then spray it the same as it is now

i had the car stripped the other month when putting in the wires took it for a spin and it made no difference 0-100 so decided to have my audio i have always wanted, i might change my mind down the road but i need it a usable daily with the kids etc

if i was to just have a hu i would strip and cage it so this is the most practical option for now and what i want

#34: Re: ushers project cleaned bay and moretts fitted Author: macj, Location: Essex PostPosted: Tue Sep 06, 2011 10:51 am
    ----
you only stripped it to try and keep me behind you....... Laughing

#35: Re: ushers project cleaned bay and moretts fitted Author: usher, Location: northallerton PostPosted: Tue Sep 06, 2011 12:03 pm
    ----
still did a good job as i had the subs in then
forgot to take the handbrake off when you was behind me Smile

#36: Re: ushers project cleaned bay and moretts fitted Author: usher, Location: northallerton PostPosted: Wed Feb 01, 2012 2:30 pm
    ----
little update got a new head unit which is capable of powering my system i have been running the old kenwood for 4 years

i went for the pioneer 9300sd
i got it mainly for the 3 hi volt pre outs but the sd and usb compatability was the decider no more changing CDs




also got some new plain number plates and some black surrounds/holders

next on the list was going to be coilovers and uprated torsion and ARB but had to get rid of the 406 estate so the 206 is now the family car lol

so this year brakes upgraded with drilled and groved discs and performance pads and braided hoses fitted

hopefully ill get the rest of the audio install finished this year just time being the issue

next year im hoping TB's

Last edited by usher on Wed Apr 18, 2012 2:58 pm; edited 1 time in total

#37: Re: ushers project new hu Author: usher, Location: northallerton PostPosted: Fri Mar 09, 2012 6:54 am
    ----
the exhaust was starting to anoy my g/f so i decided to get a decibel reducer for the centre pipe


took half hr to fit and made an instant difference to the drone that my exhaust makes
so now i have 3 decibel reducers in total 1 2.5in in the centre and one 2in in each tailpipe, the ones in the tail pipe dont do much as there not in enough to work properly but i will be changing the tail pipes soon as there starting to look tatty

i will have 2 sets as there just univeral tips that bolt on so will have one with the decibel reducers and one without keeping the centre one in as its far to loud with out any, people who went to fcs last year might have herd

next few weeks im hoping to finally get braided hoses on and tracking as ive run down the outside edge on the front tyres

#38: Re: ushers project (WIP) Author: BioCustoms, Location: Leeds PostPosted: Wed Mar 28, 2012 5:43 am
    ----
usher wrote:
they took a month but that was with working could have done them in 2 weeks with all day on them,

would that be a problem having 4 amps 75rms per chanel on one 4gauge wire with a splitter using 8 gauge

2weeks, by any chance are you paralyzed lol ... Nice alloys tho

#39: Re: ushers project new hu Author: usher, Location: northallerton PostPosted: Wed Mar 28, 2012 7:38 am
    ----
it took nearly a week to strip 2 wheels as they were stubborn lol
shame i had to strip the centres tho they ended up the same colour

#40: Re: ushers project few new bits Author: usher, Location: northallerton PostPosted: Wed Apr 18, 2012 3:05 pm
    ----
little update

got some goodies through the post




the flexi pipe was reluctantly bought as the manifold has cracked due to the stress from only having one 2bolt flange to take all the movement,
luckily its on the inside where the gasket goes so i just stuck some putty in there to help keep it in place for now

i will take more pics when i come to install the flexi pipe which i will be welding in myself (first time using a welder) could go wrong as yet but if it does im sure exhaust clamps will suffice

the hoses were stainless steel without any covering on them so i got some silicone based tape to wrap them in to stop rust etc added precaution




will give these a go myself as i know the fronts will be easy, the rears on the other hand im dreading

Last edited by usher on Tue May 01, 2012 12:15 pm; edited 1 time in total

#41: Re: ushers project few new bits Author: usher, Location: northallerton PostPosted: Mon Apr 30, 2012 1:28 pm
    ----
had a busy sunday last week got my wing back so i fitted that with some flieye tint for the morrets and fog

before



after



it has been 3 years since the wing was damaged so its nice to see a whole car

i think the morrets look lots better as my car doesnt suit much chrome

also got on with fixing the exhaust up, my friend with the welder was out so i had to bodge it for the time being with some paste which has not blown yet fingers crossed




with adding the flexi pipe i ended up with the exhaust 4inch longer so the middle rubber didnt line up right so i cut some out and sleved it, while i was on i did the same near the backbox as it seamed to need twisting so this gave me more to play with








its a bit messy at the mo but in the end i have an exhaust which sits stright for once(pics once its clean)

this week i have bought some eibach springs and weitec dampers with new drop links and wishbones

when i do this im hoping to remove the manifold to weld up the part that cracked off inside the flange which i have a new gaskett on the way

Last edited by usher on Tue May 01, 2012 12:14 pm; edited 1 time in total

#42: Re: ushers project few new bits Author: donkeyding, Location: manchester PostPosted: Mon Apr 30, 2012 2:14 pm
    ----
Just read this thread from beginning and i have to say the colour is epic!!! By far the best colour Smile

I have one question tho as i was a little baffled.......

U have recently had it mapped with cams, raceland mani, exhaust and filter.

It only made just under 150bhp?? I don't know if i have been a little nieve but i would have thought that it would have produced more with those mods. Only asking as there similar mods to
Mine and future plans.

Cheers

Dave

#43: Re: ushers project few new bits Author: Richie_206, Location: southampton PostPosted: Mon Apr 30, 2012 3:36 pm
    ----
Our cars must be brothers! mines a firedance with the same RWK number plate.

#44: Re: ushers project UPDATE PG3 Author: usher, Location: northallerton PostPosted: Tue May 01, 2012 5:15 am
    ----
DONKEYDING

yeah i was a little dissapointed with the gains but i think thays because companies over estimate gains ie viper induction syas 10bhp and exhaust said 10% thats nearly 25 imaginary bhp already

i guess from air filter pnp tb exhaust i would have gained about 3-5bhp then the cams and re-map did the 8-10 bhp

you got to remember the cams are only a re-profile without needing vernier pullys on standard timing so there not massively different from standard but enough for the time being

it is still fun to drive in all gears so i wouldnt say money wasted but if you want the power get throttle bodies as that will give you 180 atleast but at a cost of 2k ish for the kit

i spent 700 on cams followers timing belt water pump and fitting so they were the cheaper option to nearly 2k for bigger cams needing a stand alone ecu

#45: Re: ushers project UPDATE PG3 Author: usher, Location: northallerton PostPosted: Tue May 01, 2012 12:11 pm
    ----
my new front end suspension that should be on this weekend to finally end the banging and knocking


Last edited by usher on Tue May 01, 2012 12:33 pm; edited 1 time in total

#46: Re: ushers project UPDATE PG3 Author: usher, Location: northallerton PostPosted: Tue May 01, 2012 12:32 pm
    ----
had a why not moment



#47: Re: ushers project UPDATE PG3 Author: usher, Location: northallerton PostPosted: Sun May 06, 2012 2:13 am
    ----
had a hr or so on the car last night ghot calipers discs wheels and started on one ball joint which is proving difficult but left it on wd40 over night so should be all done tonight

#48: Re: ushers project UPDATE PG3 Author: usher, Location: northallerton PostPosted: Sun May 06, 2012 7:35 am
    ----
cracked on today got all parts off to be changed
wishbones on hubs wire brushed and painted with track rod, also rust treated dampers and top mounts then painted black also did my spacers as they were a little rusty

should be back on the road within a few hrs just need to top up the gearbox oil as it slipped out doh








next will be some torsion bars which im hoping to remove the rear axel and change the flexi hoses while im on and underseal the boot floor and anywhere elso i can get to

also do the trailing arms etc the same as i have today

#49: Re: ushers project UPDATE PG4 nearly new susp set up Author: usher, Location: northallerton PostPosted: Sun May 06, 2012 1:12 pm
    ----
all done had a test drive and its like new the eibach are in a different league compaired to the spax, think there a little lower but not by much, all went well in the end only trouble was ball joints and drive shaft popping out but managed fine, took most of the day but we (me n brother in law) was waiting for paint to dry at times, food to eat and tea breaks

pics when clean next is to have my exhaust welded up for the last time and new tips

got the new gaskett through for the manifold which was difficult to find

hopefully this will fit not had a test fit so just hoping, it looks about right

#50: Re: ushers project UPDATE PG4 nearly new susp set up Author: spike_202, Location: West mids PostPosted: Sun May 06, 2012 1:49 pm
    ----
Glad to hear it went well mate I've never done a wishbone always had a garage do it for me.
What torsion bars you going for next?

#51: Re: ushers project UPDATE PG4 nearly new susp set up Author: usher, Location: northallerton PostPosted: Sun May 06, 2012 3:01 pm
    ----
getting the 22mm sport ones off len bench, when i get them ill be undersealing the whole car as its looking 12 years old lol, should be fun

#52: Re: ushers project UPDATE PG4 nearly new susp set up Author: usher, Location: northallerton PostPosted: Wed May 09, 2012 12:19 pm
    ----
had a go at sorting the exhaust out yesterday 3hrs in total to find out its blowing more than when i started so today i went to exhaust a fix in darlington (think there a powerflow dealer aswell) they did a great job on my white 206 but that cost £500 which put me off going back to them with the gti

just thought of the costs though 2 back boxes 1 decat and 1 cat with pipework not too bad really

anyway they cut the manifold 2bolt flange off as the middle pipe for the gaskett had cracked off meaning it was blowing but because i had fitted a flexi hose (which i got welded the day before for £5) i could make it a solid joint so they did that with a flat gaskett and sorted out the sleves that had slight blows and re aligned the backbox all in £60 which i didnt think was too bad

the gasket old and new with the bit that has broken away from the manifold


manifold how it is now with a flat gaskett



asked for a rough cost to replace the lot cat back roughly £200 so when something elso goes wrong its in the bin as it wasnt made very well in the first place as i didnt have enough pipework and there is a length of 3" in there the angled pipework is not right etc it s not perfect and looks a state it cost 210 fitted

ive lernt some valuable lessons dont try to go cheap it will cost more in the long run

#53: Re: ushers project UPDATE PG4 Author: usher, Location: northallerton PostPosted: Wed May 09, 2012 12:26 pm
    ----
also picked up some 22mm torsion bars from len beach

#54: Re: ushers project UPDATE PG4 Author: spike_202, Location: West mids PostPosted: Wed May 09, 2012 4:44 pm
    ----
Could you do me a favour mate and measure the length of the please

#55: Re: ushers project UPDATE PG4 Author: usher, Location: northallerton PostPosted: Thu May 10, 2012 5:24 am
    ----
there 1m 37mm long

#56: Re: ushers project UPDATE PG4 Author: spike_202, Location: West mids PostPosted: Thu May 10, 2012 7:31 am
    ----
nice one bud

#57: Re: ushers project UPDATE PG4 Author: usher, Location: northallerton PostPosted: Wed Jun 06, 2012 2:24 pm
    ----
bit of an update more maintainance

as i lost some gear box oil when doing the wishbones i thought it best to change the oil and then i know how much is in there
got new filler and drain plugs from pug and the oil for less than the oil would have been from halfrauds
how bad the oil was if you can tell



also there was 2.2 ltrs in there and i was ment to have 1.9 according to 206gti.net so good job i did it

second is the checkstrap on the drivers door, i did the passanger side 2 years ago and whish i had done both at the same time as the price has doubled, now 24 quid a side

had one nut slipping so had to take the door off and thoght i would get in there and clean it before re fitting



Last edited by usher on Thu Jul 05, 2012 12:03 pm; edited 1 time in total

#58: Re: ushers project UPDATE PG4 Author: BigGreenDave, Location: The Rift PostPosted: Thu Jul 05, 2012 9:10 am
    ----
very well looked after mate i do like it. that engine cover looks sweet wish i could get my engine bay that clean its DISCUSTING haha. keep it up pal.

#59: Re: ushers project UPDATE PG4 Author: usher, Location: northallerton PostPosted: Thu Jul 05, 2012 11:59 am
    ----
thanks, standards have slipped the last few year but getting back on top of it now starting at one end and working back, then bodywork as it really is looking tatty, next on the list is to re condition the axel and underseal

more maintainance this week, had MOT due so put it in a week early to be safe as i knew the tyres were very close etc
it failed on tyres and flexi hoses
i have some braided hoses already so changed them over which has improved the pedal feel a little, the old ones were about 2x longer so not sure if this would make a difference or wether there was a little air in the system, also got some tyres on and changed the track rod ends to make the front end completly new

we got the tracking near as dammit it drives straight but the wheel is lop sided so needs setting up properly soon

in the end it passed mot with advisory for exhaust noise and the fact they couldnt test the rear seat belts because i had the kids car seats in

some pics of the new hoses on, the drop links with silicone tape on didnt go to plan with oily hands and tools so i stripped them back to normal




#60: Re: ushers project UPDATE PG4 Author: Andy_, Location: Isle of Man PostPosted: Fri Jul 06, 2012 1:10 am
    ----
Love the colour of your car

#61: Re: ushers project UPDATE PG4 Author: Edward, Location: In the garage PostPosted: Fri Jul 06, 2012 7:10 am
    ----
Is that brake pipe right? Doesnt look it. That L shaped bit of copper is unsupported and will break eventually. Everytime you steer it will try to bend it and the constant flexing will end in disaster.

#62: Re: ushers project UPDATE PG4 Author: spike_202, Location: West mids PostPosted: Fri Jul 06, 2012 7:20 am
    ----
I was also thinking that paul looks v.unsafe mate, at very least it should be supported at the hub then to the flex fixing. I would of just had a custom flex made up that goes direct to it 2bh

#63: Re: ushers project UPDATE PG4 Author: usher, Location: northallerton PostPosted: Fri Jul 06, 2012 12:40 pm
    ----
thats the way the standard hoses were there just a little shorter, must admit i dont like how flimsy brake pipes are so might make up a bracket for them as there is plenty of space between the flexi ending and copper elbow starting (thread i mean) to fit a washer style bracket

ill have the weels off again soon im sure, so will have a good look

thanks for the heads up

#64: Re: ushers project UPDATE PG4 Author: Edward, Location: In the garage PostPosted: Fri Jul 06, 2012 4:03 pm
    ----
I've seen a similar thing but they always have a supporting bracket. I'd sort that straight away.

Have a look at some pictures of Sierra Cosworth calipers. I'm sure they have a bracket.

#65: Re: ushers project UPDATE PG4 Author: usher, Location: northallerton PostPosted: Sat Jul 07, 2012 11:44 am
    ----
will do as i said they came pretty much like that off the 406 coupe, but there again there will be more play in the rubber hoses, ill check them on full lock both wys with the wheels off tomorrow probably, im sure i could make a bracket to bolt in to the hub where the abs sensor mount is

#66: Re: ushers project UPDATE PG4 Author: usher, Location: northallerton PostPosted: Sat Jul 07, 2012 12:03 pm
    ----
do you mean something like what these calipers have??
clicky

i might see if them hoses will be long enough without the copper pipe as they the same thread, do you know why they use the copper part any benifits?

#67: Re: ushers project UPDATE PG4 Author: Edward, Location: In the garage PostPosted: Sat Jul 07, 2012 1:16 pm
    ----
Thats the sort of thing yes. I imagine the length of copper pipe means the hose doesnt need to reach as far into a wide wheel.

#68: Re: ushers project UPDATE PG5 clean up Author: usher, Location: northallerton PostPosted: Mon Jul 09, 2012 1:17 pm
    ----
been under the car looking at the hoses and there is no movment in the copper parts so ill leave them for now checking them every time i have the wheels off

i was planning to wash the car after this so thought i may as well clean up the arch and wheels

wheels after a good soak in AG custom wheel cleaner






arch after a scrub then spray wax i found in the shed to help the dirt come off next time
(i know i missed a bit)















and finished, i did try to cover up the stone chip on the black of the alloys with some hammerite i had left in a rattle can as its not worth re doing them properly like i did last time




i think the arches need some underseal to help keep them from rotting so thats to do when the rest of the car gets undersealed

#69: Re: ushers project UPDATE PG5 clean up Author: usher, Location: northallerton PostPosted: Sat Jul 14, 2012 11:54 am
    ----
got the car tracked up today, it was way out but now drives like a dream few odd results from the printout but not much i can do about it






there not much camber up front lol

#70: Re: ushers project UPDATE PG5 clean up Author: usher, Location: northallerton PostPosted: Tue Aug 14, 2012 12:35 pm
    ----
tosion bars Will be getting fitted on the 25 if they come out without issues. i have scrapped the idea of undersealing the car and fitting a 180 axle for this year anyway

i have started to soak them in wd 40 (the ones on the car lol)

#71: Re: ushers project UPDATE PG5 clean up Author: Edward, Location: In the garage PostPosted: Tue Aug 14, 2012 12:47 pm
    ----
You say there is no movement in those copper pipes, when going over bumps etc there definately will be flex. That should be your first priority to fit. Bonkers to ignore it.

#72: Re: ushers project UPDATE PG5 clean up Author: usher, Location: northallerton PostPosted: Wed Aug 15, 2012 10:53 am
    ----
as i said there is no play in them while steering ill take another look to see if they have moved at all, they come from the factory like that with the rubber hoses

#73: Re: ushers project UPDATE PG5 clean up Author: rypod206, Location: sheffield PostPosted: Wed Aug 15, 2012 12:32 pm
    ----
when i picked my brembos up they also had copper pipes, and also crap lol, my custom hoses were only £40 delivered, might be worth investing.



#74: Re: ushers project UPDATE PG5 engine mount Author: usher, Location: northallerton PostPosted: Fri Aug 24, 2012 1:40 pm
    ----
had a little fun yesterday and today, decided to get a powerflex bust for the engine as it was near enough the same price as an oem one, and there not a stiff as the vibra technics so should be ok to leave the others standard,

removing the old one was easier said then done, managed to remove the rubber (with cutting myself lol) then came the fun bit of cutting/chiveling out the outer shell, in the process of this i hit the oil level probe and oil started to leak everywhere so rang pug to get a new one which was 40quid (expensive mistake) but they couldnt get it till the morning, so left the car leaking over night and lost over 2ltrs so nearly an oil change, got the new bush in within 5 mins of getting the shell out




result is i would recomend doing it but mind the oil level probe lol, engine feels alot sharper and the car feels more solid but miine was shot as the engine swayed so much that its rattled the exhaust lose a few times


tomorrow is torsion bars Embarassed

#75: Re: ushers project UPDATE PG5 engine mount, torsion bars in Author: usher, Location: northallerton PostPosted: Wed Aug 29, 2012 6:10 am
    ----
over the weekend i had a go at fitting the torsion bars ive had for a few months, they were a bit of a pain with the trailing arm coming away instead of the torsion bar, after one day i got the top bar out and the new one in, then the bottom bar took nearly 2 days to get out i had to knock it in and out for ages then it finally came out,

got it all back together and realised i had raised the back end slightly but think ill keep it for a while, might lower it a little late on but we will see

how it used to sit, with the old front sprins also




how it sits now with the new springs and torsion bars




there 22mm pug sport bars which have made the back near enough as firm as the front so happy with it, just need to fix the arb bolt that connects to the arm as this sheered off when i tried to loosen it Sad

think ill re thread it as getting the bolt out wont be easy

next is to make a bracket up for the brake hoses

#76: Re: Re: ushers project UPDATE PG5 engine mount Author: DeadEyePaul, Location: Rugby,Warwickshire PostPosted: Wed Aug 29, 2012 12:03 pm
    ----
Pretty good matey! Keep it up Wink love the brembo brakes very sexy

#77: Re: Re: ushers project UPDATE PG5 engine mount Author: Andrew, Location: Black Country Ay I PostPosted: Wed Aug 29, 2012 1:42 pm
    ----
Looks better since you've raised the back

#78: Re: ushers project UPDATE PG5 engine mount.22mm torsion bars Author: usher, Location: northallerton PostPosted: Thu Sep 20, 2012 1:30 pm
    ----
ive come to like the hight now looks more balanced, feels smoother to drive also lol, did give it a wash and polish with the intednt on putting up some pics but then it rained, sods law

think next up is to get rid of the exhaust as its really getting on my nervs like the noise but not the drone or tapping that it has from time to time, it ruins the car now imo

#79: Re: ushers project UPDATE PG5 engine mount.22mm torsion bars Author: spike_202, Location: West mids PostPosted: Fri Sep 21, 2012 2:05 pm
    ----
Good work mate

I did the same when I had the 180 bars fitted at Harrys we raised the back end and it looks more level and doesn't feel skitchy round corners any more.

#80: Re: ushers project UPDATE PG5 engine mount.22mm torsion bars Author: usher, Location: northallerton PostPosted: Tue Oct 02, 2012 1:10 pm
    ----
did you notice any difference with the 180 tbs as mine are 22mm and not overly noticable

untill you hit a speed bump anyway

#81: Re: ushers project UPDATE, f******g fuming RTA Author: usher, Location: northallerton PostPosted: Wed Oct 03, 2012 1:20 pm
    ----






guy basically undertook my on a single lane t junction and didnt see i was indicating left and turning left, i mean i was infront of him when he hit me

insurance willing to repair, which i was surprised at, he not taking the blame as yet so my insurance will pay up but ill hold off till he accepts its his fault i mean how can you hit a car infront of you and then say its not your fault

i even said to the guy which way was i indecating and he couldnt answere

bloody 4x4 cars they should stay on the fields, people who have them have no idea how to drive them

both me and partner ok and kids luckly
rant over

#82: Re: ushers project UPDATE, f******g fuming RTA Author: Edward, Location: In the garage PostPosted: Wed Oct 03, 2012 2:31 pm
    ----
He did he get down the inside of you if you were positioned correctly?

#83: Re: ushers project UPDATE, f******g fuming RTA Author: usher, Location: northallerton PostPosted: Wed Oct 03, 2012 2:38 pm
    ----
he went over sheverons i know that much he cant have been looking where he was going too much

im still confused as to how he managed it

i was almost lined up on the road i had pulled out on to

#84: Re: ushers project UPDATE, f******g fuming RTA Author: Edward, Location: In the garage PostPosted: Wed Oct 03, 2012 3:06 pm
    ----
People often buy big stuff like that because they aren't confident in their own driving. It makes them feel safer where the real problem is their inability to drive correctly.

#85: Re: ushers project UPDATE, f******g fuming RTA Author: usher, Location: northallerton PostPosted: Wed Oct 03, 2012 3:39 pm
    ----
Edward wrote:
People often buy big stuff like that because they aren't confident in their own driving. It makes them feel safer where the real problem is their inability to drive correctly.

couldnt agree more hate 4x4's, now even more

i remember on top gear they lined up 15 kids behind one and they still couldnt see them in the mirrors

#86: Re: ushers project UPDATE, f******g fuming RTA Author: Seabook PostPosted: Wed Oct 03, 2012 7:22 pm
    ----
f*** that P44 SRP.

Always dislike SUV on public road, always think because they have small c**k so they need a big car to make themselves feel good

#87: Re: ushers project UPDATE, f******g fuming RTA Author: Seabook PostPosted: Wed Oct 03, 2012 7:25 pm
    ----
And i think in this case there is no way your insurance will lose in the fight.

In a single lane road it is almost 100% certain is the rear car fault..

#88: Re: ushers project UPDATE, f******g fuming RTA Author: craigdmjv, Location: Wiltshire PostPosted: Thu Oct 04, 2012 12:36 am
    ----
give it good clean before it goes into the bodyshop as theyll calculate the costs there to see if its 'financially' repairable

#89: Re: ushers project Author: usher, Location: northallerton PostPosted: Sun Dec 16, 2012 2:30 am
    ----
after the last feew months nothing has been resolved my insurance thought i was at a round about after all the images and 3 statements so they told me they had settled 50 50 so the case has been put straight with a written statement and more drawings of the incident

the third party is saying i overtook him and turned on to himwhich is bonkers considdering i had my 2 kids in the car and it was at a givway onto a main road

once its sorted hopefully ill be buying the car back as it will be written off, then splitting i think as it needs too many thing to make it a nice car again starting with a full re spray then hub bearings sound on their way out with new discs and pads needed all round so may as wel get a bigger car for the money needed to fix it up

#90: Re: ushers project Author: spike_202, Location: West mids PostPosted: Mon Dec 17, 2012 3:08 am
    ----
Correct me if I'm wrong mate but if it's 'wrote off' don't it have to be crushed? As no parts are safe for resale?

#91: Re: ushers project Author: Edward, Location: In the garage PostPosted: Mon Dec 17, 2012 8:11 am
    ----
Writing off a car is often down to financial reasons rather than the condition of the parts on the car.

#92: Re: ushers project Author: usher, Location: northallerton PostPosted: Mon Dec 17, 2012 10:16 am
    ----
the condition of parts was my reason to split as it Will cost as much as a new 2nd hand car would

#93: Re: ushers project Author: spike_202, Location: West mids PostPosted: Mon Dec 17, 2012 12:11 pm
    ----
Will they let you buy it back if it's wrote off?

#94: Re: ushers project Author: usher, Location: northallerton PostPosted: Mon Dec 17, 2012 1:54 pm
    ----
assume so its not finished with liability yet but betting it Will be
this unfortunately Will be the end of my car as the costs ain't worth it when i can get a newer bigger car massive shame as i wanted to tb it
can't afford to track it which has crossed my mind

Will have to buy it back as its my only car so it Will be around but no more money in to it moding unless i come in to some money

#95: Re: ushers project Author: usher, Location: northallerton PostPosted: Mon Dec 17, 2012 1:56 pm
    ----
spike_202 wrote:
Correct me if I'm wrong mate but if it's 'wrote off' don't it have to be crushed? As no parts are safe for resale?

it Will be un economical repair i think

#96: Re: ushers project Author: LeeThr, Location: North West Wales PostPosted: Mon Dec 24, 2012 8:06 pm
    ----
spike_202 wrote:
Correct me if I'm wrong mate but if it's 'wrote off' don't it have to be crushed? As no parts are safe for resale?

You have a few different catergories

CAT A - Crush only no parts can be salvaged (most commonly when a fatality has occurred in the car) absolutely nothing can be sold on from the car, not even a bolt

CAT B- Salvage only - The car itself can never return to the road but any salvageable parts can be sold on

CAT C - Uneconomical repair - Cant remember the exact figure think it's 50% but if the parts & labour for the repair exceed that percentage of the car's value then it is deemed uneconomical.

CAT D - similar to cat c, but more of a get out clause for the insurance company. Say now someone hits your wing, and you go through insurance to repair, they may choose to cat d write off the car as they do not want to authorize the work and then get the car into a body shop where they remove the wing and find more structural damage underneath which could push the cost into a cat c.

#97: Re: ushers project Author: usher, Location: northallerton PostPosted: Tue Feb 05, 2013 3:12 pm
    ----
bit of an update

the insurance have said it looks like it will go in my favour and the third part has changed their story twice so should work out well

also 3 months ago i started a new job working as a courier so full time and more pay so the car will be staying and if all works out well a track car which will get used regular hopefully , i just need to work out what can tow it on a trailer as its so confusing about what you can tow etc any tips would be appreciated

think the next mod will be some new wheels as the ones i have now are past their best by a long shot and smaller wheels will work much better on the track, then maybe a new exhaust

just an idea but has anyone made their own a rolll cage??

#98: Re: ushers now track project, and new daily Author: usher, Location: northallerton PostPosted: Sun Feb 24, 2013 3:26 am
    ----
insurance has still not come to a good end my insurance had told the third party to settle 50/50 for the 3rd time without my consent so its having to drag on more, went and got a renault megane the 1.5 dci (pic once cleaned) which will save me on 1k a year in running costs so more to spend on the 206

plans for the 206 are to wait for insurance to come through then buy it back get a new colour coded door and pop the dent out then i need wheels, discs pads, and exhaust then it will be ready for track use, also a little diet for the car so all interior will be up for grabs,

#99: Re: ushers now track project, and new daily Author: usher, Location: northallerton PostPosted: Sun Mar 03, 2013 3:27 am
    ----
insurance threw it out so once i have finished building the new podeum for the car as i have a van to take home and cant fit it on the drive as well, interior wil start coming out and battery in the boot, and other quick and easy mods for now

#100: Re: ushers now track project Author: usher, Location: northallerton PostPosted: Mon Apr 22, 2013 11:02 am
    ----

the new work area is not finished
view from my kitchen window (ideal for cups of coffee to be passed through :))

its not too bad for costing me the breeze blocks and slabs at the end, yes i ran out of block paving lol

things have been moving slow atm with needing to finish the kitchen decoration off and work but on the plus side ill be set 5 days a week working now with my own van from next week, i have sold a few bits from the interior and got the cable for the battery re-location with new clamps etc

im also weighing things i remove to see how much can be removed just out of curiosity, im hoping to have the interior stripped in a week or so and battery in the boot

#101: Re: ushers now track project Author: usher, Location: northallerton PostPosted: Wed May 01, 2013 4:12 pm
    ----
bit of an update, the interior should be gone tomorow so cracked on and removed more stuff heres what it looks like at the moment still loads to do



i decided to be a little OCD and weigh what i removed and weigh what im putting back in, the interior (seats and door cards) weigh about 65kg
head unit heater fan car mats weighing 5kg

with bolts and other bits of trim still to go not to mention all the amp wires and board of mdf i put in the boot to keep the exhaust managable

dredding the sound proofing removal

#102: Re: ushers now track project Author: usher, Location: northallerton PostPosted: Mon May 06, 2013 4:27 pm
    ----
Another small update

Managed to get seat belts out fully removed boot mdf and majority of the sound proofing which came up surprisingly easy just had to pull

Total weight remove is 93kg without speaker cables yet




Bucket seats purchased harnesses to go then battery on the boot matrix out and other things then seats in

#103: Re: ushers now track project Author: jonsully, Location: ireland PostPosted: Tue May 07, 2013 2:43 am
    ----
goin well usher,if I remember correctly I think I knocked 150kgs off the weight of my car,I was the same weighed everything Laughing Laughing a nice weight reduction improvement is a fibreglass bonnet,I think mine weighed about 9kgs less than the original bonnet.aircon is also quite heavy was about 10kg in total I think.also got smaller lighter wheels (every 1kg reduction in unsprung weight is equivalant to 10kg sprung weight) which made a really nice difference.also the sound deadning the stuff is on like tar under the front seats,you need a heat gun to get it up,weighs 5-6kg Shocked

#104: Re: ushers now track project Author: Lex206, Location: Holland PostPosted: Tue May 07, 2013 8:02 am
    ----
my fiberglass bonnet weighs 2,5 kgs,original weighs like 15 kgs i reckon?

#105: Re: ushers now track project Author: jonsully, Location: ireland PostPosted: Tue May 07, 2013 8:20 am
    ----
Lex206 wrote:
my fiberglass bonnet weighs 2,5 kgs,original weighs like 15 kgs i reckon?

ya thats probably right i couldnt remember the exact weight difference

#106: Re: ushers now track project Author: usher, Location: northallerton PostPosted: Tue May 07, 2013 3:33 pm
    ----
Fibre glass bonnet is on the card eventually but more important things first like seats lol
Been at it again removed carpet and roof lining with some underlay stoll the main part in the fiotwells to go new total removed is 108kg the speaker cables were 5kg alone lol


#107: Re: ushers now track project Author: usher, Location: northallerton PostPosted: Sun May 12, 2013 12:23 pm
    ----
Got more done today. Dash is out. passanger air bag is out just need to remove the cover off it to put it back on. Nothing weighed atm as it started to rain and I had bits all over the place lol. In this pic it's actually running so assuming that I can remove ove all other wires near enough



Last edited by usher on Sat May 18, 2013 12:24 pm; edited 3 times in total

#108: Re: ushers now track project Author: macj, Location: Essex PostPosted: Sun May 12, 2013 1:06 pm
    ----
I can feel a rally car coming on Twisted Evil

#109: Re: ushers now track project Author: usher, Location: northallerton PostPosted: Sun May 12, 2013 1:31 pm
    ----
Lol I can't afford to be replacing bits I leave behind after mistakes lol and the Mrs wouldn't like it too much. Strictly track for me

#110: Re: ushers now track project Author: usher, Location: northallerton PostPosted: Sun May 12, 2013 1:31 pm
    ----
Lol I can't afford to be replacing bits I leave behind after mistakes lol and the Mrs wouldn't like it too much. Strictly track for me

#111: Re: ushers now track project Author: jonsully, Location: ireland PostPosted: Sun May 12, 2013 1:58 pm
    ----
usher wrote:
Got more done today. Dash is out. passanger air bag is out just need to remove the cover off it to put it back on. Nothing weighed atm as it started to rain and I had bits all over the place lol. In this pic it's actually running so assuming that I can remove ove all other wires near enough


if u want to put the airbag to use heres what i did wit my passenger one Laughing


www.youtube.com/watch?v=PSfyW6N9e-o

#112: Re: ushers now track project Author: usher, Location: northallerton PostPosted: Sun May 12, 2013 2:32 pm
    ----
lol glad it didnt go off as to remove it i had my head on it

i see what you ment by the front underlay being heavy its huge, how much more did you remove to get it out or did you hack at it, also did you remove the matrix?

#113: Re: ushers now track project Author: jonsully, Location: ireland PostPosted: Sun May 12, 2013 3:04 pm
    ----
usher wrote:
lol glad it didnt go off as to remove it i had my head on it

i see what you ment by the front underlay being heavy its huge, how much more did you remove to get it out or did you hack at it, also did you remove the matrix?

i removed all of the underlay used a knife to get it out and i also removed the matrix.the matrix is quite heavy.i forget exactly how many kgs but i have it lying in the garage ill weigh it 2m..

#114: Re: ushers now track project (harnedded arrived) Author: usher, Location: northallerton PostPosted: Sat May 18, 2013 12:19 pm
    ----
had these arrive the other day cost near enough 40 posted which i thought was a bargain



#115: Re: ushers now track project (harnesses arrived) Author: macj, Location: Essex PostPosted: Sun May 19, 2013 4:14 am
    ----

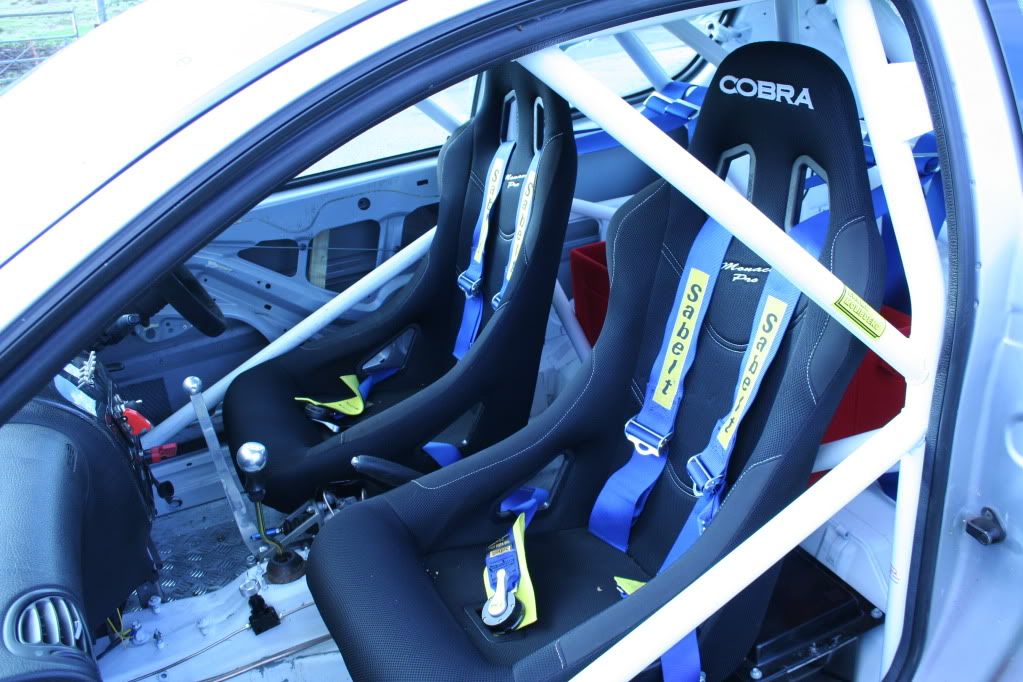

I will have these seats for sale at the end of July when the MSA date expires for rallying



#116: Re: ushers now track project (harnesses arrived) Author: usher, Location: northallerton PostPosted: Sun May 19, 2013 5:26 am
    ----
I got some seats coming next week I think paid 30 for them again A bargain

Question is how do you fit the point for the middle of the car is it a case of weld in new mounts

#117: Re: ushers now track project (harnesses arrived) Author: macj, Location: Essex PostPosted: Sun May 19, 2013 6:16 am
    ----
You have two choices..... weld in new cross rails to blot your seat to or buy the base plate from OMP which is suppose to fit your existing mounts but needs a small tweak Wink

#118: Re: ushers now track project (harnesses arrived) Author: usher, Location: northallerton PostPosted: Sun May 19, 2013 8:57 am
    ----
Nice and easy then. I'll make so e subframe up and get some 206 runners for them. What thickness of sheet metal would you use 4mm?

#119: Re: ushers now track project (harnesses arrived) Author: macj, Location: Essex PostPosted: Sun May 19, 2013 8:59 am
    ----
mine are made from 3mm sheet I think .... plenty if you include bends in them....

#120: Re: ushers now track project (harnesses arrived) Author: usher, Location: northallerton PostPosted: Sun May 19, 2013 9:18 am
    ----
Ill do that then and use the rear seat mounts for the shoulder belt

#121: Re: ushers now track project (harnesses arrived) Author: usher, Location: northallerton PostPosted: Fri Jun 14, 2013 2:46 pm
    ----
Got a new exhaust for the car today well happy with it for 30 quid. Shame about the back box but I'll keep my one once I have it measured up



#122: Re: ushers now track project (exhaust arrived) Author: shell-vt, Location: durham PostPosted: Fri Jul 05, 2013 10:07 am
    ----
mid section looks nice though.. you doing any croft this season

#123: Re: ushers now track project (exhaust arrived) Author: usher, Location: northallerton PostPosted: Fri Jul 05, 2013 2:26 pm
    ----
wont be ready till 2015 i dont think, getting a cage made up for 300 notes which is a bargain, exhaust will be on in the next month or so when i get the cat off so i can have a de cat made with the flexi at the top, wiring to finish and seats and harnesses

then save up for discs and pads lol

there a 206 going to croft in a few weeks from thirsk with the jc racing people in moonstone

#124: Re: ushers now track project (exhaust arrived) Author: usher, Location: northallerton PostPosted: Sat Jul 06, 2013 9:48 am
    ----
cat will be sorted nex week so the bean can can be fitted which is one thing off the list

#125: Re: ushers now track project (exhaust arrived) Author: shell-vt, Location: durham PostPosted: Sun Jul 07, 2013 3:55 am
    ----
as were close to you were you getting your cage made up from we need a full weld in ourselves..

#126: Re: ushers now track project (exhaust arrived) Author: usher, Location: northallerton PostPosted: Sun Jul 07, 2013 6:01 am
    ----
search for walker race cars (WRC) on face book and send him a message, they make auto grass cars so plenty capable, based in thirsk

#127: Re: ushers now track project (exhaust arrived) Author: shell-vt, Location: durham PostPosted: Mon Jul 08, 2013 9:41 am
    ----
just rang clevland car conversions £550 so going with him. thanks

#128: Re: ushers now track project (exhaust arrived) Author: usher, Location: northallerton PostPosted: Mon Jul 15, 2013 3:38 pm
    ----
UPDATE

had a very productive weekend

removed rear wiring and neatened up the stuff thats left
repaired 3rd brake light wiring as i got a little snip happy lol
removed all cut wire to the fuse box
relocated earth for the fuel pump as this went to the rear earth mount
removed heater matrix and heater unit from inside car
removed rest of the easy access firewall sound proof













to do list

fit exhaust
make a u bend for matrix pipes
remove rest of sound proofing from fire wall d/s
remove fuse box and sort out the front wiring some more
remove rear wiper
remove air con


should have the cat back tomorrow with a better flexi pipe in and the new cat back fitted all going well (i have bad luck with exhuats fitting right)

then on with air con removal i think then its nearly stripped just need some windows so i can remove the motors and wiring for them and finish the wiring off neatly tucked away

grind down all lugs and strews tricking out

been told making a bracket up for the 406 brembos wont be a problem so ill be making a template up and seeing the cost 302mm will be good for track i think

#129: Re: ushers now track project stripping more (15/7/13) Author: usher, Location: northallerton PostPosted: Mon Jul 22, 2013 12:43 am
    ----
made some good progress yesterday, got the matrix pipes joined, and started to remove the air con, decided to make more room as it seamed easy enought to do which it was

got some bonnet pins on the way so i can remove the catch


#130: Re: ushers now track project stripping more (15/7/13) Author: usher, Location: northallerton PostPosted: Sat Aug 24, 2013 9:08 am
    ----
small update

got the exhaust fitted all working nice now



removed air con and all pipes etc



cut away at radiator cover



fitted bonnet pins in boot and removed rear wiper motor



just need to get another aux belt for a non ac gti then i can put the front back together, more bonnet pins for the bonnet, finish off removing wires, start thinking about getting some seats

#131: Re: ushers now track project stripping more (24/8/13) Author: usher, Location: northallerton PostPosted: Sun Aug 25, 2013 10:11 am
    ----
just text update today, got all parts sorted for the bin and weighed, new total is 145kgs without additions

shame im having to bim the AC pump but one of the mounting rounded off so out came the angle grinder

removed more wires and got the fuse box out to get behind and access to the bulk head underlay

#132: Re: ushers now track project stripping more (24/8/13) Author: shell-vt, Location: durham PostPosted: Sun Aug 25, 2013 3:10 pm
    ----
what pipe did you use for matrix removal?? mine is same stage as yours

#133: Re: ushers now track project stripping more (24/8/13) Author: usher, Location: northallerton PostPosted: Sun Aug 25, 2013 4:26 pm
    ----
The 2 pipes that go to the bay I cut one off and shortened the longer coolant hose in the bay and twisted the other slightly and put them together with the bleed valve at the top
Hope that makes sence if not I can take pics

It is kinked slightly but it's not a main pipe

#134: Re: ushers now track project stripping more (24/8/13) Author: shell-vt, Location: durham PostPosted: Thu Aug 29, 2013 1:05 pm
    ----
yer can you take pics please buddy.

#135: Re: ushers now track project stripping more (24/8/13) Author: usher, Location: northallerton PostPosted: Thu Aug 29, 2013 2:59 pm
    ----
No problem I'll do it tomorrow

#136: Re: ushers now track project stripping more (24/8/13) Author: shell-vt, Location: durham PostPosted: Thu Aug 29, 2013 5:06 pm
    ----
Have you got your suspention sorted yet? me ive just purchesed fk stuff today so im going to try that out on the back 206 first ..

#137: Re: ushers now track project stripping more (24/8/13) Author: usher, Location: northallerton PostPosted: Fri Aug 30, 2013 12:03 am
    ----
It's still in the planning stage atm but should have a quote soon then I can start shopping for springs and dampers justnnot sure on what lbs to get front and back

Should be good when done though and different

#138: Re: ushers now track project stripping more (24/8/13) Author: shell-vt, Location: durham PostPosted: Fri Aug 30, 2013 4:35 am
    ----
sounds good, pop them pics up buddy..

#139: Re: ushers now track project stripping more (24/8/13) Author: simpsonrc, Location: coventry PostPosted: Fri Aug 30, 2013 11:52 am
    ----

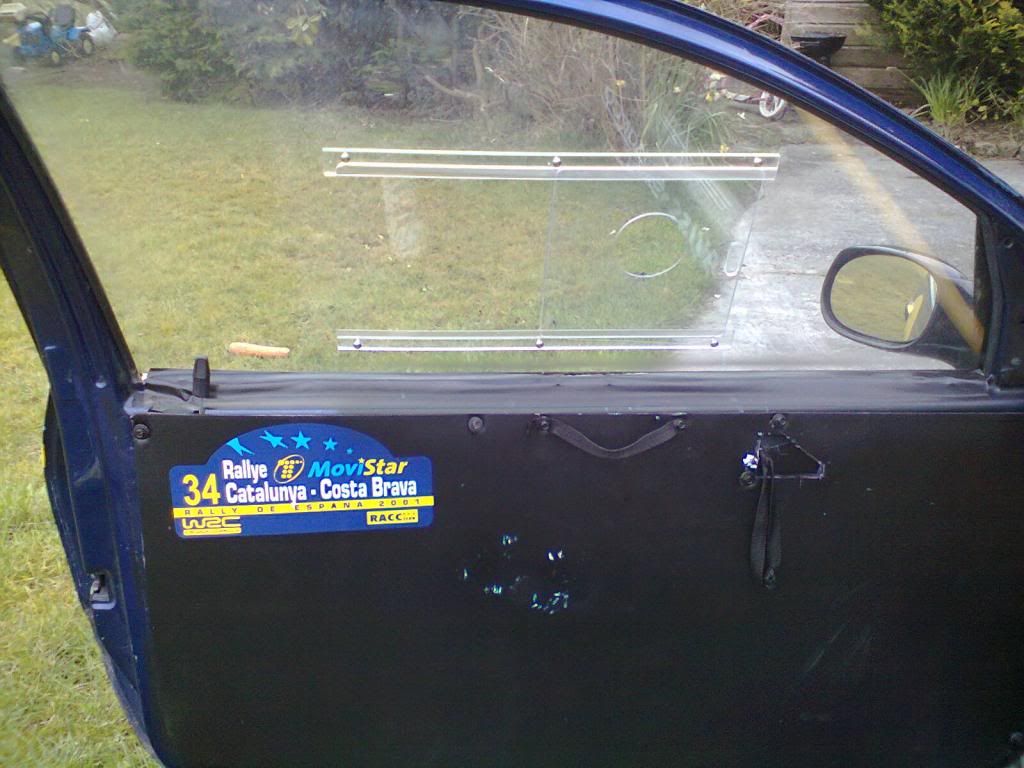

would you be interested in some fiberglass doors to save some more weight?

#140: Re: ushers now track project stripping more (24/8/13) Author: simpsonrc, Location: coventry PostPosted: Fri Aug 30, 2013 11:55 am
    ----
would you be interested in some fiberglass doors to save some more weight?

#141: Re: ushers now track project stripping more (24/8/13) Author: usher, Location: northallerton PostPosted: Fri Aug 30, 2013 2:08 pm
    ----
i was planning on using twin wall grenhouse plastic sheet but thanks anyway

#142: Re: ushers now track project stripping more (24/8/13) Author: usher, Location: northallerton PostPosted: Fri Aug 30, 2013 2:15 pm
    ----




#143: Re: ushers now track project stripping more (24/8/13) Author: shell-vt, Location: durham PostPosted: Sat Aug 31, 2013 5:10 am
    ----
yer so just returns back to same pipes really yer.

#144: Re: ushers now track project stripping more (24/8/13) Author: usher, Location: northallerton PostPosted: Sat Aug 31, 2013 6:28 am
    ----
yeah nice and simple

#145: Re: ushers now track project stripping more (24/8/13) Author: usher, Location: northallerton PostPosted: Sat Aug 31, 2013 12:05 pm
    ----
to do list

finish removing wires, neaten them up
fit fuse box back and steering wheel, speedo with dash support
grind down lugs and fill holes from removing things
relocate battery to boot or rear footwell
re fit front end and fill coolant
make brackets for bigger discs
buy and fit buckets
fit harnesses
buy and fit catch tank
buy and fit oil cooler
buy and fit bonnet pins
buy and fit discs and pads all round
buy and fit one tyre as it blew
get cage made with rear springs
get polycarbonate windows made
remove window motor
cut door inner pannels and make door card

long way to go i think

#146: Re: ushers now track project stripping more (24/8/13) Author: shell-vt, Location: durham PostPosted: Sun Sep 01, 2013 8:12 am
    ----
usher can we pop over to look at what goes were please pm me address thanks michelle..

#147: Re: ushers now track project stripping more (24/8/13) Author: usher, Location: northallerton PostPosted: Sat Sep 28, 2013 6:38 am
    ----
another little update

managed to find some bucket seats for 40 quid the pair



hopefully i will resolve the non starting issue i have had for a few weeks tomorrow seams to be imobilizer and lack of wires that are needed as i started cutting from the fuse box and bsi

#148: Re: ushers now track project stripping more (24/8/13) Author: usher, Location: northallerton PostPosted: Sat Dec 28, 2013 12:17 pm
    ----
finally got some wires for the loom so when they arrive i should be able to get it running again, its been put back together and cleaned prior to winter and covered with a car cover, only thig is where do these wires go in the bottom left




once its running again time to start installing the seats and getting some runners to keep it being able to move as i might not be the only driver, got some plastic sorted for the doorcards so can start on them also

#149: ushers track project running again 2014 rewired Author: usher, Location: northallerton PostPosted: Sat Jan 04, 2014 11:05 am
    ----
got the car started for the first time in months today, it sounded a bit tappy to begin with but calmed down after 10 mins,

start






how things were left with lack of light and the car worked so job done really




just need to check the fan works as it didnt come on in 15mins of running, check the coolant is air free again, wire up speedo, fuse box for headlights, tidy all wires up and then i can start on other things

how can you tell if the coolant is circulating other than feeling the pipes as im not 100% watter bottle was warm all pipes were warm and rad

#150: Re: ushers now track project stripping more (24/8/13) Author: macj, Location: Essex PostPosted: Sat Jan 04, 2014 1:31 pm
    ----
passenger seat looks a little small mate Laughing

#151: Re: ushers now track project stripping more (24/8/13) Author: Edward, Location: In the garage PostPosted: Sat Jan 04, 2014 2:21 pm
    ----
usher wrote:
only thig is where do these wires go in the bottom left


The three plugs are for the horn, bonnet alarm and possibly the indicator too.

#152: Re: ushers now track project stripping more (24/8/13) Author: usher, Location: northallerton PostPosted: Sat Jan 04, 2014 6:12 pm
    ----
Thanks thought they were but got a little worried when I fit it all back on and they were left.

#153: Re: ushers now track project stripping more (24/8/13) Author: usher, Location: northallerton PostPosted: Sat Jan 04, 2014 6:15 pm
    ----
@macj
My feet were killing me and I had only split the looms in 2 separate piles. My youngest wasn't too impressed when he wanted it and I left it in the car after putting the cover back on

#154: Re: ushers track project running again 2014 rewired Author: usher, Location: northallerton PostPosted: Mon Jan 06, 2014 4:04 pm
    ----
vid of me on the track in 2009 only just got a photobucket account think macj was in this / behind me Smile



#155: Re: ushers track project running again 2014 rewired Author: usher, Location: northallerton PostPosted: Tue Jan 21, 2014 10:40 am
    ----
little update

got the new loom in completely so just need to trim down the wires and heat shrink the joins as i did it with tape to make sure it all worked before attacking it properly, going to neaten all the wires and tape them in sections to make life easier if any need looking at or tracing in the future

also went out and got some washers and longer bolts to raise the back of the bonnet as i have been told its good for cooling the engine etc the l;ogic is there anyway with heat rising



#156: Re: ushers track project running again 2014 rewired Author: usher, Location: northallerton PostPosted: Tue Jan 21, 2014 1:22 pm
    ----



Got these to play with later in the week when I neaten the wiring

#157: Re: ushers track project running again 2014 rewired Author: Amsirp, Location: Irelanda ;) PostPosted: Wed Jan 22, 2014 7:04 pm
    ----
Hey, sorry if this has already been asked, but you replaced the steering wheel?... that would fail the MOT right? removing a safety feature... Thanks!

#158: Re: ushers track project running again 2014 rewired Author: usher, Location: northallerton PostPosted: Thu Jan 23, 2014 1:55 am
    ----
its a track car

and yes it was on the road with the same wheel but the law haddent been enforced then, not had an air bag on ds for 6 years

#159: Re: ushers track project running again 2014 rewired Author: usher, Location: northallerton PostPosted: Thu Jan 23, 2014 12:44 pm
    ----
Started the car up after connecting all wires for the speedo which surprisingly showed water temp revs and speed all fine but after 10mins there was a warning light as water temp was up to 110 with no sign of the fan comin on or water pump working so going to check them over next to see if they work with live wired to them and check fuses in the engine bay. Might have some wires in different as the loom was from a car I haven't seen so don't know if its the exact same year etc. The codes on the wires didn't match so I traced them to the same ports and connectors etc

#160: Re: ushers track project running again 2014 rewired Author: Edward, Location: In the garage PostPosted: Thu Jan 23, 2014 1:20 pm
    ----
usher wrote:

also went out and got some washers and longer bolts to raise the back of the bonnet as i have been told its good for cooling the engine etc the l;ogic is there anyway with heat rising

You aren't taking into account high pressure areas on the front of the car though and relatively low pressure under the bonnet...general opinion of anybody over the age of 18 is that it doesn't work.
Why do you want more cooling?

#161: Re: ushers track project running again 2014 rewired Author: macj, Location: Essex PostPosted: Thu Jan 23, 2014 1:34 pm
    ----
looking good bud..... ready for FCS 2014 Twisted Evil

#162: Re: ushers track project running again 2014 rewired Author: usher, Location: northallerton PostPosted: Thu Jan 23, 2014 1:46 pm
    ----
My aim is to have it ready for 2015 and have an outing or 2 Croft circuit is only round the corner for me so that going to be first then might get to fcs since its now a weekend event
Last edited by usher on Fri Jan 24, 2014 4:00 pm; edited 1 time in total

#163: Re: ushers track project running again 2014 rewired Author: usher, Location: northallerton PostPosted: Fri Jan 24, 2014 2:16 am
    ----
@edward

i was after more cooling as the engine would over heat after 10 laps last time so aim to keep things cooler for the next outing and other than oil cooler this is the only other options i know of that might make a difference

#164: Re: ushers track project running again 2014 rewired Author: usher, Location: northallerton PostPosted: Sun Feb 02, 2014 11:24 am
    ----
had a fiddle with the wiring for the fan as this is still not working, found a corroded connection so cut and spaded it, the fan kicked in about 100 deg but cut out after a sec so pretty much lost now, where does the wiring go for this ie sensors and relays

#165: Re: ushers track project running again 2014 rewired Author: Edward, Location: In the garage PostPosted: Sun Feb 02, 2014 11:34 am
    ----
Is the fan working at low speed? Or just high speed?

The ECU controls the fan using the info from the coolant temp sensor. At lower temps the fan runs slow (Uses the resistor to control the current) but at higher temperatures it bypasses the resistor to run the fan at higher speed. That's why there are two relays - one for low speed and one for high.

I'd just remove the resistor and have the fan wiring running a high speed only. I'm sure you can find a way of using just one relay too.

The terminals in the relay housings normally corrode so the wiring might need to be cut and fresh terminals fitting.

#166: Re: ushers track project running again 2014 rewired Author: usher, Location: northallerton PostPosted: Sun Feb 02, 2014 1:03 pm
    ----
yeah i have re done one wire which made the fan come on but then stopped, couldnt say wether it was fast or slow as it was that quick. the car got in to the red on water temp, oil temp didnt move, the rad was hot so assume the water is pumping round right

#167: Re: ushers track project running again 2014 rewired Author: macj, Location: Essex PostPosted: Sun Feb 02, 2014 1:05 pm
    ----
Check the fuses first and then perhaps try a new fan relay. I would go with Eds idea and stick with full speed only. Less to go wrong in the future

#168: Re: ushers track project running again 2014 rewired Author: usher, Location: northallerton PostPosted: Sun Feb 02, 2014 1:08 pm
    ----
can i not run it with a live and remove the relays all together and run it from another source ie thermostat

fuses all seem fine but wiring not 100% as some functions dont work how they used to and some interfeer with others

#169: Re: ushers track project running again 2014 rewired Author: macj, Location: Essex PostPosted: Sun Feb 02, 2014 1:17 pm
    ----
You need a relay to take the current. If you go direct to wiring your asking for a fire. This is why I scrapped the French wiring and made up my own loom from scratch

#170: Re: ushers track project running again 2014 rewired Author: usher, Location: northallerton PostPosted: Sun Feb 02, 2014 1:24 pm
    ----
lol why am i always so far away from help, i woudl like to keep the flames in the engine tho lol, which one is the relay for slow speed the top one or bottom

#171: Re: ushers track project running again 2014 rewired Author: macj, Location: Essex PostPosted: Sun Feb 02, 2014 1:30 pm
    ----
no idea Laughing

#172: Re: ushers track project running again 2014 rewired Author: usher, Location: northallerton PostPosted: Sun Feb 02, 2014 1:33 pm
    ----
lol not exactly on your priority list of things to remember when its not there eh, ilkl do some digging see wether i can find out wich one it is and remove it then its less to worry about

seems that ill solve all issues with a new ecu and loom lol

#173: Re: ushers track project running again 2014 rewired Author: macj, Location: Essex PostPosted: Sun Feb 02, 2014 1:34 pm
    ----
Swap the top and bottom one over. Try it again and see if it works

#174: Re: ushers track project running again 2014 rewired Author: usher, Location: northallerton PostPosted: Sun Feb 02, 2014 1:37 pm
    ----


this looks to be the one single fan twin speed with ac

quality a little bad

ill try that next time im on with it, once thats done i can relax and finish the wiring and sort little isues of interferance

#175: Re: ushers track project running again lexan windows Author: usher, Location: northallerton PostPosted: Sat Mar 08, 2014 4:02 pm
    ----





finally got round to fitting my lexan windows, the fronts still need securing at the bottom when i cut the inner out of the door, the rears i riveted in but due to the lip from the rubber it ended up bowing the lexan inward Embarassed , i used some silicone to stop it leaking, i recomend bolts with locking nuts for anyone trying this as that would eliminate the bowing and with spacer between would help, mine are stuck now so no going back, i could drill out the rivets and replace with bolts but the silicone i used is also a strong glue Rolling Eyes

ill weigh the glass to add it up im guessing 5 kg and with door inner it should be near 10kg in total bringing the new total to near 170kg removed

also got some std seat runners and some steel to make the subframes for the buckets

next pllan is to re wire the rad fan then once its all running how it was ill be cleaning it up inside and removing lugs etcc

#176: Re: ushers track project running again lexan windows Author: macj, Location: Essex PostPosted: Sun Mar 09, 2014 3:54 am
    ----
looking better all the time mate...... FCS showdown Laughing

#177: Re: ushers track project running again lexan windows Author: usher, Location: northallerton PostPosted: Sun Mar 09, 2014 4:59 am
    ----
haha i wish discs and pads are still needed and a cage, out of interest what do you use on the rally car discs and pads wise

#178: Re: ushers track project running again lexan windows Author: macj, Location: Essex PostPosted: Sun Mar 09, 2014 5:03 am
    ----
usher wrote:
haha i wish discs and pads are still needed and a cage, out of interest what do you use on the rally car discs and pads wise

I have brembo calipers, pads and discs up front with pagid pads and cheapo discs on rear.... I am not a great believer in the hype of expensive is best Wink

#179: Re: ushers track project running again lexan windows Author: usher, Location: northallerton PostPosted: Sun Mar 09, 2014 7:18 am
    ----
Brembo pads up front just std type or fast road etc im looking at pagid blue as herd really good things about them and yeah cheapo discs all round a groove is a groove at end of the day. Also considering ferrodo ds2500 as there rated by alot of members and a lot cheaper

#180: Re: ushers track project running again lexan windows Author: shell-vt, Location: durham PostPosted: Sun Mar 09, 2014 8:18 am
    ----
THEM WINDOWS LOOK REALLY WELL . think im selling the gt now whats left of it anyway..

#181: Re: ushers track project running again lexan windows Author: macj, Location: Essex PostPosted: Sun Mar 09, 2014 1:00 pm
    ----
usher wrote:
Brembo pads up front just std type or fast road etc im looking at pagid blue as herd really good things about them and yeah cheapo discs all round a groove is a groove at end of the day. Also considering ferrodo ds2500 as there rated by alot of members and a lot cheaper

Just standard Brembo pads and cheapo Pagid rears

#182: Re: ushers track project running again lexan windows Author: usher, Location: northallerton PostPosted: Sun Mar 09, 2014 2:40 pm
    ----
And they manage fine? Surprised at that

#183: Re: ushers track project running again lexan windows Author: macj, Location: Essex PostPosted: Sun Mar 09, 2014 5:04 pm
    ----
You will see at FCS Wink

#184: Re: ushers track project running again lexan windows Author: usher, Location: northallerton PostPosted: Sun Mar 09, 2014 5:45 pm
    ----
If it wasn't so far away. maybe next year when I'm done then can justify the trip. I'll be keeping you in my rear view haha Very Happy

#185: Re: ushers track project running again lexan windows Author: macj, Location: Essex PostPosted: Mon Mar 10, 2014 12:29 am
    ----
or taking a view from the grass Rolling On The Floor Laughing

#186: Re: ushers track project running again lexan windows Author: usher, Location: northallerton PostPosted: Mon Mar 10, 2014 1:41 am
    ----
all options have been considdered

#187: Re: ushers track project running again lexan windows Author: 206gt160, Location: Blackburn PostPosted: Sat Mar 15, 2014 3:40 pm
    ----
Is fcs always at castle combe? I will be able to make it engine wise.. just with a tad untidy body work. If I give it my full attention I might be able to sort the wrap out before fcs I have three months lol its just if we get some nice weather to do it in. Is there any lads from round the lancashire area that meet up and drive down that you know of

#188: Re: ushers track project running again lexan windows Author: macj, Location: Essex PostPosted: Sat Mar 15, 2014 6:55 pm
    ----
Its been at Castle Combe for 2013, make a point of getting down there to get in a track session or two. You will gain a lot of info from those attending and there are some good exhibitors with a wealth of knowledge to be tapped for free.....

#189: Re: ushers track project running again lexan windows Author: usher, Location: northallerton PostPosted: Sun Mar 16, 2014 2:45 am
    ----
its been at rockingham and donnington before but im from the north east so its getting a bit too far for me lol, being a weekend now tho i might make it next year with the macj beater i mean 206

#190: Re: ushers track project running again lexan windows Author: macj, Location: Essex PostPosted: Sun Mar 16, 2014 5:19 am
    ----
I don't remember any plans to down tune the rally car........ Shocked

#191: Re: ushers track project running again lexan windows Author: usher, Location: northallerton PostPosted: Sun Mar 16, 2014 6:46 am
    ----
just leave your handbrake on for me Smile

#192: Re: ushers track project running again lexan windows Author: macj, Location: Essex PostPosted: Sun Mar 16, 2014 11:54 am
    ----
Only on the corners Laughing

#193: Re: ushers track project running again lexan windows Author: 206gt160, Location: Blackburn PostPosted: Mon Mar 17, 2014 6:58 am
    ----
I know there will a lot of guys that I can gain info off for my build. I just hope everything goes the way I'm hoping over the next couple of months.. ive ordered my coilovers so she won't be on stilts lol. Hopefully be running a turbo for 2015 fcs. Looking forward to getting down this year. May only be there for either the friday or the sunday I've just found out that its my nieces 2nd birthday so I wony be able to make it saturday until 16.30 so I dont know if its worth going saturday

#194: Re: ushers track project running again lexan windows Author: usher, Location: northallerton PostPosted: Mon Mar 17, 2014 1:39 pm
    ----
well im hoping 2015 for my first outing see you there

and macj i might have a sticker made up rspecially for you

#195: Re: ushers track project running again lexan windows Author: macj, Location: Essex PostPosted: Mon Mar 17, 2014 1:53 pm
    ----
I already have my sticker ready

"WHAT GTi??"

#196: Re: ushers track project running again lexan windows Author: macca1411, Location: Westhoughton, Lancashire PostPosted: Mon Mar 17, 2014 2:21 pm
    ----
usher wrote:
and macj i might have a sticker made up rspecially for you

Something like this on the bonnet?


#197: Re: ushers track project running again lexan windows Author: macj, Location: Essex PostPosted: Mon Mar 17, 2014 5:51 pm
    ----
Rolling On The Floor Laughing

#198: Re: ushers track project running again lexan windows Author: usher, Location: northallerton PostPosted: Mon Mar 17, 2014 5:58 pm
    ----
i was thinking bumper sticker

#199: Re: ushers track project lexan windows and door trimmed Author: usher, Location: northallerton PostPosted: Sun Mar 23, 2014 11:31 am
    ----
little update, i got round to completing one doow set up




cut out all the inner door and put some self tapping screws in the bottom of the window, cut out quite a bit of weight probably 5 kg with window motor and runners, the door is slightly less rigid now haha

next was the door card i was going to use plastic that is used in greenhouses but proved too difficult to shape, so i opted for some 3.5mm ply got it really close then cut out for the handle






not 100% keen on the handle but its more functional atm, need to put a pull cord in and think i will use this one as a template and cut another one, next issue is what do do with them as i dont want to leave them plain black

#200: Re: ushers track project running again lexan windows Author: macj, Location: Essex PostPosted: Sun Mar 23, 2014 11:54 am
    ----
You should cut them out of thin ali sheet they look the part and may be lighter in the long run.

#201: Re: ushers track project running again lexan windows Author: usher, Location: northallerton PostPosted: Sun Mar 23, 2014 12:12 pm
    ----
i would but at double the price per door i think money would be better saved Smile

#202: Re: ushers track project running again lexan windows Author: macj, Location: Essex PostPosted: Sun Mar 23, 2014 1:28 pm
    ----
Tell my Mrs that with a sequential on order Rolling Eyes

#203: Re: ushers track project running again lexan windows Author: jonsully, Location: ireland PostPosted: Sun Mar 23, 2014 2:36 pm
    ----
I use corryboard its wat estate agents use to make for sale signs its way lighter and can be cut wit a knife and sprayed.mine looks very tatty in the pic but then again its not a show car Smile



#204: Re: ushers track project running again lexan windows Author: usher, Location: northallerton PostPosted: Mon Mar 24, 2014 1:33 am
    ----
yeah thats what i started with but didnt like it i imagained me putting my arm through it at some point lol, as you say yours is functional what more is needed, did you trim the inside of the door?

#205: Re: ushers track project running again lexan windows Author: usher, Location: northallerton PostPosted: Thu Apr 17, 2014 9:32 am
    ----
little update pics after weekend

had the week off work so made the most of it, the mrs had some plans in the house frst so obviously that came first lol,

on with the car i got the passanger door cut down and the window secured in place, weighed the bits i have removed, amazed it came to 10kg plus for motors and metal removed, the origional windows weigh 11kg all together with the lexan weighing about 6kg so all in all a good saving of 15+ kg for lexan windows

next i cleared the back of the car and made a start on the lugs and rear door card area, cut out back seat mounts and seat belt mounts, i got to the stage of every little helps

tried to mount the radiator fan to the rad with a universal mount kit but turns out there only intended for one use as after removing the kit it wouldnt go tight again su cut some more out of the cowl and wired in a switch to the live and binned the relays

next is to finish the fugs mounts and ds rear door card area then tidy up the wiring finally start to put it back together

#206: Re: ushers track project running again lexan windows Author: usher, Location: northallerton PostPosted: Fri Apr 18, 2014 2:31 pm
    ----






Had a good clean out of the car today and finished off cutting lugs and door inners next is to tackle the wiring

also the other day i trimmed the front radiator cowl some more as the ideas of using radiator mount kit didnt work

new total for weight removed is about 170kg with aprox 20 kg to go back in must say im impressed with what i have binned so far, not sure where else i can reduce weight, fibreglass or carbon bonnet maybe or hack at it with the angle grinder like everything else Very Happy

#207: Re: ushers track project fully stripped and trimmed Author: jonsully, Location: ireland PostPosted: Sat Apr 19, 2014 8:15 am
    ----
Smaller lighter wheels mine are 6kg per wheel lighter than the origanal nimrods and more importantly its unsprung weight.decat pipe nd race pipe is a few kilos lighter, fibreglass bonnet another 10kg lighter.race battery 6kgs less.polycarb rear screen and fibreglass tailgate is about. 12 kgs less a

#208: Re: ushers track project fully stripped and trimmed Author: usher, Location: northallerton PostPosted: Sat Apr 19, 2014 9:18 am
    ----
deffo looking at the same wheels you have as im rerstricted to styles because of the brembos also im running 17 wolfrace so should be alot heavier than nimrods, are yours pug offset, got a de cat atm middle box will come out when cage is fitted could reach the 200kg mark as yet

#209: Re: ushers track project fully stripped and trimmed Author: Edward, Location: In the garage PostPosted: Sat Apr 19, 2014 9:37 am
    ----
Tailgate struts need to come off!

#210: Re: ushers track project fully stripped and trimmed Author: jonsully, Location: ireland PostPosted: Sat Apr 19, 2014 10:09 am
    ----
Ya mine are pug offset with spacers to clear the calipers.great little wheels very light!!

#211: Re: ushers track project fully stripped and trimmed Author: usher, Location: northallerton PostPosted: Sat Apr 19, 2014 2:22 pm
    ----
They will once I have sorted the cage and rear window as for now as it's a used access in to the car.

#212: Re: ushers track project fully stripped and trimmed Author: jonsully, Location: ireland PostPosted: Sat Apr 19, 2014 4:15 pm
    ----
cage = 45-50kg Thumbs Up

#213: Re: ushers track project fully stripped and trimmed Author: usher, Location: northallerton PostPosted: Sat Apr 19, 2014 4:20 pm
    ----
hoping to have one about 30 if possible i know its a big ask lol

#214: Re: ushers track project fully stripped and trimmed Author: usher, Location: northallerton PostPosted: Mon Apr 21, 2014 6:19 am
    ----
made a start on the wiring again cutting away bits that are for the rear as the donor loom had been cut with these in

i think i messed up the wipers and lights but there going on switches anyway the bsi only has a couple of wires going to it now, the car runs still(ended up with an interestin issue of taking the key out and the engine running for a few seconds after, home made turbo timer ?) and dials are showing accurate readings so still happy, just a little more untangling to do today hopefully then tuck it away

#215: Re: ushers track project fully stripped and trimmed Author: usher, Location: northallerton PostPosted: Mon Apr 21, 2014 9:12 am
    ----
Windows cleaned and polished with some wax to help prevent scratches look alot better now



#216: Re: ushers track project fully stripped and trimmed Author: macj, Location: Essex PostPosted: Mon Apr 21, 2014 10:34 am
    ----
taking shape now bud.......good job Wink

#217: Re: ushers track project fully stripped and trimmed Author: PezHdi, Location: Shrewsbury PostPosted: Mon Apr 21, 2014 11:18 am
    ----
See where there back windows are screwd In. You want to get somthjng to make the lip black as it will fit in the bump strips Smile looking good tho Smile

#218: Re: ushers track project fully stripped and trimmed Author: usher, Location: northallerton PostPosted: Mon Apr 21, 2014 12:05 pm
    ----
too late now for that i riviyed them in and used some really strong glu/sealent Rolling Eyes also they have been bowed in from the lip of the window frame so lessons have been learnt Embarassed

macj
it is getting there slowly ive started more on the wires i only have 3 wires coming from the bsi lol, wiper not working but they going on a switch also lights not working from std wiring, the rad fan is now on a switch so when it comes to itb time all ill have to do is add the ecu to the engine loom the rest will be good

i was planning on doing this when i get the itbs but got snip happy again Laughing shouldnt take much to add lives to the wipers and lights surely

back at work now so progress will be at the usual pace haha

#219: Re: ushers track project fully stripped and trimmed Author: usher, Location: northallerton PostPosted: Mon Apr 21, 2014 12:05 pm
    ----
oh and ive traded up on the work chair its now got legs and everything Smile

#220: Re: ushers track project fully stripped and trimmed Author: usher, Location: northallerton PostPosted: Mon Apr 21, 2014 12:29 pm
    ----

ne from the front after hacking the rad cowl more

#221: Re: ushers track project fully stripped and trimmed Author: macj, Location: Essex PostPosted: Mon Apr 21, 2014 12:39 pm
    ----
usher wrote:
too late now for that i riviyed them in and used some really strong glu/sealent Rolling Eyes also they have been bowed in from the lip of the window frame so lessons have been learnt Embarassed

macj
it is getting there slowly ive started more on the wires i only have 3 wires coming from the bsi lol, wiper not working but they going on a switch also lights not working from std wiring, the rad fan is now on a switch so when it comes to itb time all ill have to do is add the ecu to the engine loom the rest will be good

i was planning on doing this when i get the itbs but got snip happy again Laughing shouldnt take much to add lives to the wipers and lights surely

back at work now so progress will be at the usual pace haha

I found the lighting wires on the stalk on a process of elimination.... found where to feed the live and then got the sides and dip beam.... click the switch for flash and you will find full beam. A power probe is a real help here

#222: Re: ushers track project fully stripped and trimmed Author: usher, Location: northallerton PostPosted: Mon Apr 21, 2014 12:50 pm
    ----
yeah gonna do the same try each wire and see what happens

i have volt meter

#223: Re: ushers track project fully stripped and trimmed Author: usher, Location: northallerton PostPosted: Mon Apr 21, 2014 4:44 pm
    ----
macj wrote:
usher wrote:
too late now for that i riviyed them in and used some really strong glu/sealent Rolling Eyes also they have been bowed in from the lip of the window frame so lessons have been learnt Embarassed

macj
it is getting there slowly ive started more on the wires i only have 3 wires coming from the bsi lol, wiper not working but they going on a switch also lights not working from std wiring, the rad fan is now on a switch so when it comes to itb time all ill have to do is add the ecu to the engine loom the rest will be good

i was planning on doing this when i get the itbs but got snip happy again Laughing shouldnt take much to add lives to the wipers and lights surely

back at work now so progress will be at the usual pace haha

long shot but do you remember which wires Laughing

I found the lighting wires on the stalk on a process of elimination.... found where to feed the live and then got the sides and dip beam.... click the switch for flash and you will find full beam. A power probe is a real help here

#224: Re: ushers track project fully stripped and trimmed Author: macj, Location: Essex PostPosted: Tue Apr 22, 2014 12:26 am
    ----
I know they were french Confused

#225: Re: ushers track project fully stripped and trimmed Author: usher, Location: northallerton PostPosted: Wed Apr 23, 2014 12:15 am
    ----
best put them in the bin then

#226: Re: ushers track project fully stripped and trimmed Author: Edward, Location: In the garage PostPosted: Wed Apr 23, 2014 1:05 am
    ----
Ever thought there's a reason for that radiator cowling to be there?

#227: Re: ushers track project fully stripped and trimmed Author: usher, Location: northallerton PostPosted: Wed Apr 23, 2014 2:40 pm
    ----
Economy? It's still got top and botttom mounts

#228: Re: ushers track project fully stripped and trimmed Author: Edward, Location: In the garage PostPosted: Wed Apr 23, 2014 4:00 pm
    ----
It's there to make sure the air goes through the radiator rather than round the sides of it.

#229: Re: ushers track project fully stripped and trimmed Author: PezHdi, Location: Shrewsbury PostPosted: Wed Apr 23, 2014 4:44 pm
    ----
Surely you can make something like white noise did in his project thread Smile

#230: Re: ushers track project fully stripped and trimmed Author: usher, Location: northallerton PostPosted: Mon May 26, 2014 12:35 pm
    ----



ittle update had a hr or so on the car, got the key barrel out and wired in the switch pannel i got for it, relativly straight forward think the imobilizer is not working as the key was outside the car without the sensor connected ??? wonder how big the range is on the sensor also identified side light wires but struggling to find the main dipped and indecators so might end up tracing backwards

#231: Re: ushers track project fully stripped and trimmed Author: Edward, Location: In the garage PostPosted: Mon May 26, 2014 5:08 pm
    ----
Why is it all rusty?

#232: Re: ushers track project fully stripped and trimmed Author: usher, Location: northallerton PostPosted: Mon May 26, 2014 5:38 pm
    ----
I left it outside when I was removing all the sound proofing. Joys of working outside

#233: Re: ushers track project fully stripped and trimmed Author: usher, Location: northallerton PostPosted: Sun Jun 08, 2014 9:47 am
    ----
little progress but it all helps

got the battery set up in the boot just needs neatening when i do all the wires






#234: Re: ushers track project fully stripped and trimmed Author: Edward, Location: In the garage PostPosted: Sun Jun 08, 2014 10:18 am
    ----
I would have wired that straight through to the starter and alternator. All that wiring needs supporting too.

#235: Re: ushers track project fully stripped and trimmed Author: usher, Location: northallerton PostPosted: Sun Jun 08, 2014 11:42 am
    ----
Yeah needs finishing as yet just main work doneevery thing will be sorted once all wiring has been done and all switched then I'll startto put it all vback in and clip all the wires down with p clips or similar. Might leave the fuse box in place of the glove box and have all switches in the centre console where the hu used to be and heater control

#236: Re: ushers track project fully stripped and trimmed Author: existenz PostPosted: Sun Jun 08, 2014 4:08 pm
    ----
Nice !

I'm planning to put my battery in the back as well.
Is there a guide how to properly do it on a Gti 180 ?

#237: Re: ushers track project fully stripped and trimmed Author: usher, Location: northallerton PostPosted: Mon Jun 09, 2014 12:02 am
    ----
basically what you see in the pics, it will be the same for the 180

i used welding cable 5mtr then put audio wiring crimp terminal on the end and bolted the + ive together and moved the earth to the chassis earth and re earthed the battery in the boot, realy simple

#238: Re: ushers track project fully stripped and trimmed Author: shell-vt, Location: durham PostPosted: Fri Jun 20, 2014 10:25 am
    ----
still comming along nicelly usher.

#239: Re: ushers track project fully stripped and trimmed Author: usher, Location: northallerton PostPosted: Fri Jun 20, 2014 4:54 pm
    ----
thanks next is to put the lights and wipers on switched and put it back together neatly

after i get discs and pads with seats fitted it will be caged, hopefully this year

#240: Re: ushers track project fully stripped and trimmed Author: usher, Location: northallerton PostPosted: Mon Jul 14, 2014 2:21 pm
    ----
tiny update

bsi is now in the bin so more wires to be removed, lights and wipers to wire still

also took off bumpers and jet washed behind them and cleaned up the little parts involved, fog to be used as brake cooling ducts so cut away at the glass, noticed one tyre had gone flat which caused a nice big deep crack so the wheels will be sold on and new either td's pro race or 205 speedlines going for 15"

#241: Re: ushers track project fully stripped and trimmed Author: existenz PostPosted: Wed Sep 24, 2014 1:26 pm
    ----
Still some questions regarding the battery relocation.

Number 5 and 6 on the picture remain unchanged, right? I cut off the original battery positive cable/terminal (number 4) and connect it to my new battery terminal block (I've taken one from a BMW E36) which connects my new positive battery cable to the battery in the boot.
What about the three negative battery connections? I use a new negative cable (as short as possible) to earth the battery to the chassis. So number 2 on the picture can be cut off, cause it's not needed anymore? What about cable number 1 and 3?



#242: Re: ushers track project fully stripped and trimmed Author: Edward, Location: In the garage PostPosted: Wed Sep 24, 2014 2:20 pm
    ----
Citroen Picasso can give a handy connection for the positive cable under the bonnet to the feed to the boot.

#243: Re: ushers track project fully stripped and trimmed Author: existenz PostPosted: Wed Sep 24, 2014 2:49 pm
    ----
As said, I bought the battery terminal from an E36. I'm just not sure, what original negative battery can be removed or cut off?

#244: Re: ushers track project fully stripped and trimmed Author: Edward, Location: In the garage PostPosted: Thu Sep 25, 2014 4:36 am
    ----
You still need all the original earth connections.

#245: Re: ushers track project fully stripped and trimmed Author: existenz PostPosted: Thu Sep 25, 2014 7:51 am
    ----
Thanks a lot !

#246: Re: ushers track project fully stripped and trimmed Author: usher, Location: northallerton PostPosted: Fri Oct 24, 2014 9:50 am
    ----
Little update I finally got some seat runners so got drivers seat in for now.



#247: Re: ushers track project fully stripped and trimmed Author: shell-vt, Location: durham PostPosted: Fri Oct 24, 2014 11:34 am
    ----
looking good, mine is back but its going away again for engine conversion

#248: Re: ushers track project fully stripped and trimmed Author: usher, Location: northallerton PostPosted: Sat Oct 25, 2014 12:11 pm
    ----
What engine you putting in?. As you can see I still have alot to do with wiring

#249: Re: ushers track project fully stripped and trimmed Author: AWK-53, Location: Oxfordshire PostPosted: Sun Oct 26, 2014 2:34 am
    ----
Looking good

#250: Re: ushers track project fully stripped and trimmed Author: shell-vt, Location: durham PostPosted: Sun Oct 26, 2014 7:22 am
    ----
3.0 v6

#251: Re: ushers track project fully stripped and trimmed Author: usher, Location: northallerton PostPosted: Sun Oct 26, 2014 10:43 am
    ----
Nice getting more common using the v6 the power will be fun. Got busy with wiring today got main beam and dipped sorted and wiper might have to get a universal washer as the pug one don't have an earth also used to run off the bsi. Indicators are next to do then trim and neaten. Passanger seat will be in once I get more bolts for the seat as hex bolts are too wide I can't fit a socket over

#252: Re: ushers track project fully stripped and trimmed Author: 206gt160, Location: Blackburn PostPosted: Thu May 14, 2015 2:25 pm
    ----
usher wrote:
little progress but it all helps

got the battery set up in the boot just needs neatening when i do all the wires






Still need to do this

#253: Re: ushers track project fully stripped and trimmed Author: spike_202, Location: West mids PostPosted: Wed Jul 22, 2015 4:10 pm
    ----
Hay usher looking to get my dash flocked inside sprayed and dash flocked then the cage fitted in a near future. I don't supose you've got a bit of a 'how to' on taking the dash out have you especially regarding the airbags ect.
Cheers mate.

#254: Re: ushers track project fully stripped and trimmed Author: usher, Location: northallerton PostPosted: Sun Nov 15, 2015 1:03 pm
    ----
Sorry not been on here for a while. The dash is relatively easy to remove the passanger air bag is attached from behind with a few nuts the dash has 4 screws to the steering wheel cross bar that runs the full width. I have sorted out my wiring binned bsi and everything else non essential lol. Got a new washer bottle that will be in the passanger side then cut the fuse box to just 5 fuses for lights wipers etc. Next is to get the gauges sorted as original dials aren't compatabile anymore been a slow and long project but was redundant over last Xmas and now set up as a subcontractor courier so been busy elsewhere but have a vehicle for towing the car haha

#255: Re: ushers track project fully stripped and trimmed Author: 206gt160, Location: Blackburn PostPosted: Fri Feb 12, 2016 4:12 pm
    ----
usher wrote:
tiny update

bsi is now in the bin so more wires to be removed, lights and wipers to wire still

also took off bumpers and jet washed behind them and cleaned up the little parts involved, fog to be used as brake cooling ducts so cut away at the glass, noticed one tyre had gone flat which caused a nice big deep crack so the wheels will be sold on and new either td's pro race or 205 speedlines going for 15"

Usher how did you go about removing the bsi unit and have you had any issues with removing it, also did you remove the immobiliser and if so did you take a snap on what needed removing and does it run through the engine loom or is it separate.

#256: Re: ushers track project fully stripped and trimmed Author: PezHdi, Location: Shrewsbury PostPosted: Wed Feb 08, 2017 9:03 pm
    ----
Any updates on this?

#257: Re: ushers track project fully stripped and trimmed Author: usher, Location: northallerton PostPosted: Sun Feb 19, 2017 8:57 pm
    ----
206gt160 wrote:
usher wrote:
tiny update

bsi is now in the bin so more wires to be removed, lights and wipers to wire still

also took off bumpers and jet washed behind them and cleaned up the little parts involved, fog to be used as brake cooling ducts so cut away at the glass, noticed one tyre had gone flat which caused a nice big deep crack so the wheels will be sold on and new either td's pro race or 205 speedlines going for 15"

Usher how did you go about removing the bsi unit and have you had any issues with removing it, also did you remove the immobiliser and if so did you take a snap on what needed removing and does it run through the engine loom or is it separate.

been a long time i know, i pretty much went snip happy with the battery disconnected yes its de immobilized and no need for a key at all somehow only removed wires from inside the car same story with the bsi just followed wires and removed what i didnt need but with no plan to make it road worthy i didnt have to worry as anything can be wired back in thats important granted the immobilizer was a fluke lol

#258: Re: ushers track project fully stripped and trimmed Author: usher, Location: northallerton PostPosted: Sun Feb 19, 2017 9:09 pm
    ----
been a busy few years with re doin the back garden building a gym and keep on having to extend the drive for work lol, was made redundant from citylink ended up self employed for a year and a bit at yodel then left there now have 3 vans on the road doing same day deliveries all over the country also 2 boys to contend with/referee lol

not much time for the car i have removed all lugs and unnecessary lumps and bump in the cabin, got some 206 gti alloys for 50 quid well happy i waited as was looking to pay 300 years ago, they are noticeably lighter than the 17's and tyres will be alot cheaper, the dash is back in with wipers washer bottle and lights all wired in on switches just a panel to make, i have cut down the fuse box to make a tiny one with 6 or so fuses in which sits where the ashtray was,

the dials didnt work after cutting so many wires out so ordered some universal ones with sensors which still needto be put in live and negative ready in position.

i was turning it over the other week and revving some and it managed to swallow the air filter wedging it in the throttle body which resulted in oil being dumped in the inlet manifold so i have removed this for a good clean out not a big issue as probably could have done with it anyway

the air filter which was a viper had a big tear in it so i removed it all and put a round foam filter in the bottom didnt expect the car to suck that much but my stupidity going to get a ram air panel with wire mesh built in and see how that goes,

plans this year are to get the new wheels cleaned up maybe painted maybe not, haven't got the spare money at the moment, dials in and panels made for switches etc as i have all the stuff to do this, could also get the passenger seat in have that stuff waiting

pics to follow not much, try to get more as i go and maybe visit a little more often



-> Project Cars


Page 1 of 1

We are not responsible for comments posted by our users, as they are the property of the poster
Interactive software released under GNU GPL, Code Credits, Privacy Policy
