#31: Re: Ape's SEAT Leon Cupra R 225 Author: Ape, Location: Clipping the Apex!Posted: Fri Feb 19, 2010 5:14 am ---- It depends, if you're handy with fibreglass it can be mounted anywhere. Some people have adapted it for the middle vents also, along with ashtray mounting etc.
I don't use the drivers vent that much to be honest, there's a window demister vent built into the top of the dash which does the trick.
#32: Re: Ape's SEAT Leon Cupra R 225 Author: twed207, Location: borders, near carlisle.Posted: Fri Feb 19, 2010 6:01 am ---- i've got a similar thing for my iPhone...
an app called REV, and a OBDII WIFI reader. it does data logging, diag stuff and what not. is pretty cool
i love gadgets! lol
#33: Re: Ape's SEAT Leon Cupra R 225 Author: Ape, Location: Clipping the Apex!Posted: Fri Feb 19, 2010 7:49 am ---- Is it accurate though? I've not find one that's as accurate as I'd like it to be
#34: Re: Ape's SEAT Leon Cupra R 225 Author: twed207, Location: borders, near carlisle.Posted: Fri Feb 19, 2010 8:31 am ---- seems acurate... i've seen loads of reviews and no one's compained.
RPM's are bang on. MPH is just about bang on with GPS. etc...
it wasn't cheap like! reader was £140 and the app was about £23...
#35: Re: Ape's SEAT Leon Cupra R 225 Author: Ape, Location: Clipping the Apex!Posted: Fri Feb 19, 2010 12:52 pm ---- You're right, thats not cheap!!!
I've just ordered myself a Liquid Gauge
#36: Re: Ape's SEAT Leon Cupra R 225 Author: Howey, Location: Kings LynnPosted: Fri Feb 19, 2010 12:56 pm ----
Ape wrote:
You're right, thats not cheap!!!
I've just ordered myself a Liquid Gauge
That looks awesome! What functions does it have??
#37: Re: Ape's SEAT Leon Cupra R 225 Author: Ape, Location: Clipping the Apex!Posted: Fri Feb 19, 2010 1:39 pm ----
Quote::
Features
Main Menu
Gauge Display
Graph Display
G force
Speed timing
Faults and adaptations
Multigauge (Coolant, Air, N75, Boost)
Setup
Sub Menus
Gauge Display
Engine power
Torque
Boost pressure
Cmd pressure
Mass Air Flow
Air Fuel Ratio
Air intake temp
Exhaust temp
Coolant temp
N75 position
Oil temp
Graph data
Engine power
Torque
Boost pressure
Cmd pressure
Mass Air Flow
Air Fuel Ratio
Air intake temp
Exhaust temp
Coolant temp
N75 position
Missfire
Dyno plot
Timing Correction plot
G - Force Display
Bar Graph
Left
Right
Acceleration
Deceleration
Faults and Adaptations
Display and Erase Fault Codes
Big turbo setting for up to 500hp engines
English, French, Finnish and German language versions
Imperial or Metric units
#38: Re: Ape's SEAT Leon Cupra R 225 Author: calum001, Location: FifePosted: Fri Feb 19, 2010 2:25 pm ---- nice one bud you'll need to let me know how you get on with it
#39: Re: Ape's SEAT Leon Cupra R 225 Author: Ape, Location: Clipping the Apex!Posted: Fri Feb 19, 2010 2:36 pm ---- Aye no worries. There'll be a few more goodies coming at the end of April I've got a couple of weeks off after next week, then I'm back to work, followed by my 'Ring trip, then as soon as I'm back I'll be getting the next phase done as well.
#40: Re: Ape's SEAT Leon Cupra R 225 Author: Edward, Location: In the garagePosted: Sat Feb 20, 2010 2:14 am ----
Howey wrote:
That looks awesome! What functions does it have??
It provides geek and nerd data.
#41: Re: Ape's SEAT Leon Cupra R 225 Author: Geoff, Location: Evesham, WorcestershirePosted: Sat Feb 20, 2010 4:13 am ----
Edward wrote:
Howey wrote:
That looks awesome! What functions does it have??
It provides geek and nerd data.
You will be getting one next....
#42: Re: Ape's SEAT Leon Cupra R 225 Author: Ape, Location: Clipping the Apex!Posted: Sat Feb 20, 2010 4:45 am ----
Geoff wrote:
Edward wrote:
Howey wrote:
That looks awesome! What functions does it have??
It provides geek and nerd data.
You will be getting one next....
Yep, he's right, it provides useless nerd info, such as when your oil temperature is sufficient so you can open it up without damaging anything, or you can find out the oil temperatures reached when used properly (on track etc). Boost Pressure readings so you can see if there are any leaks or problems. Fault codes that may crop up without illuminating the EML etc. Air/Fuel Ratio so you can monitor if its leaning out too much etc. Pretty Useless to be honest.
The full list is a couple of posts up....
#43: Re: Ape's SEAT Leon Cupra R 225 Author: Ape, Location: Clipping the Apex!Posted: Sun Feb 21, 2010 12:11 pm ---- Camera is installed Bit fiddly but got there in the end, video quality isn't too bad considering it's £13!
Played around with the Dumpvalve as well this afternoon
#44: Re: Ape's SEAT Leon Cupra R 225 Author: Ape, Location: Clipping the Apex!Posted: Tue Feb 23, 2010 1:25 pm ---- Played with the Dumpvalve at the weekend, and mounted the new little camcorder! It boosts harder now, it is a bit louder but it's not too bad.

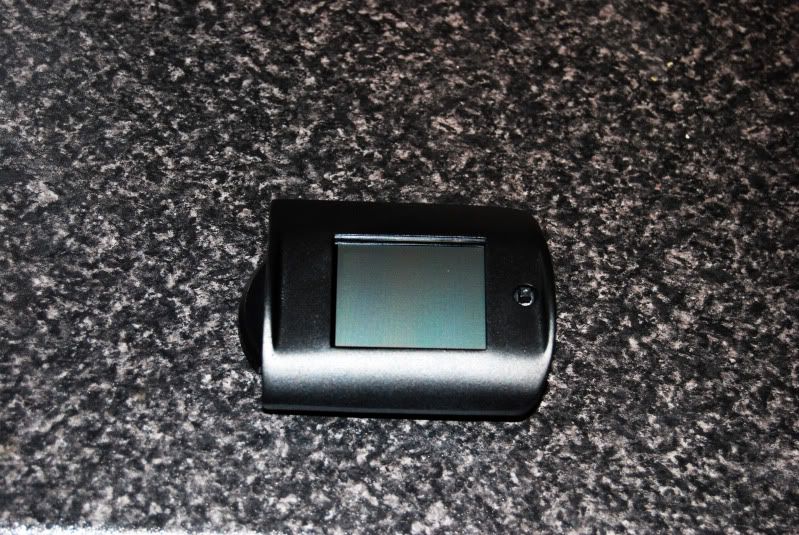

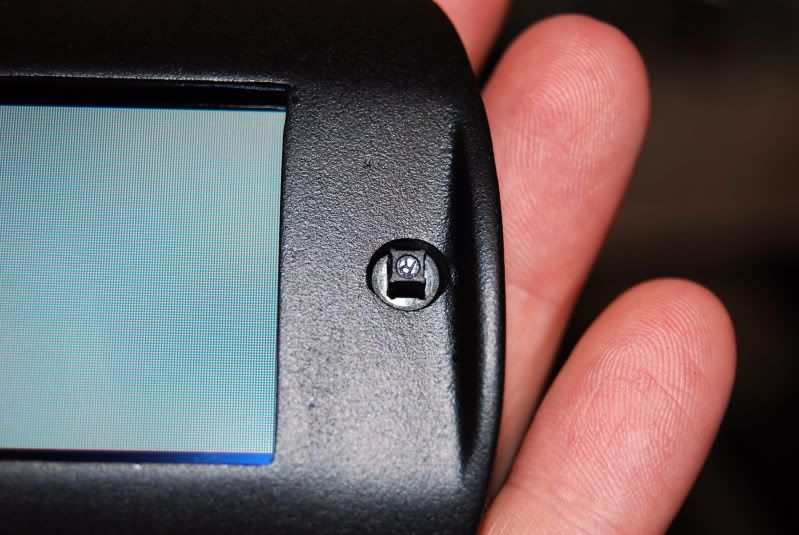

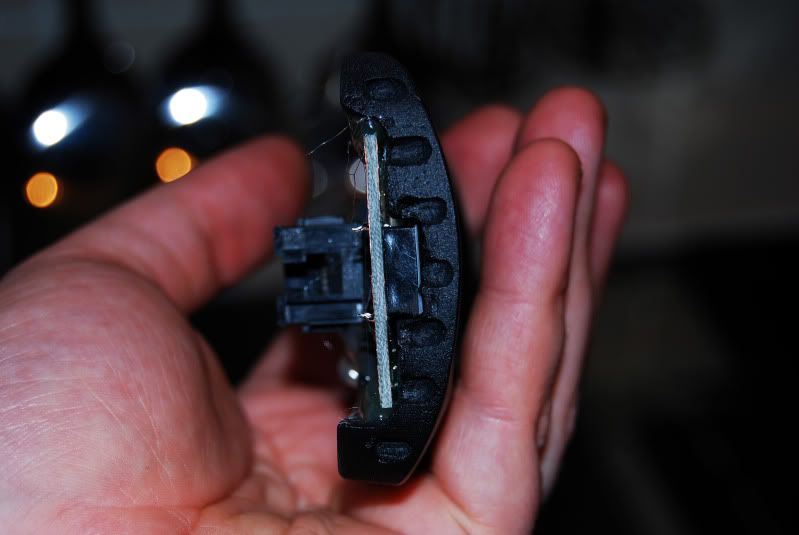

I got a delivery today My Race Diagnostics Liquid Gauge:

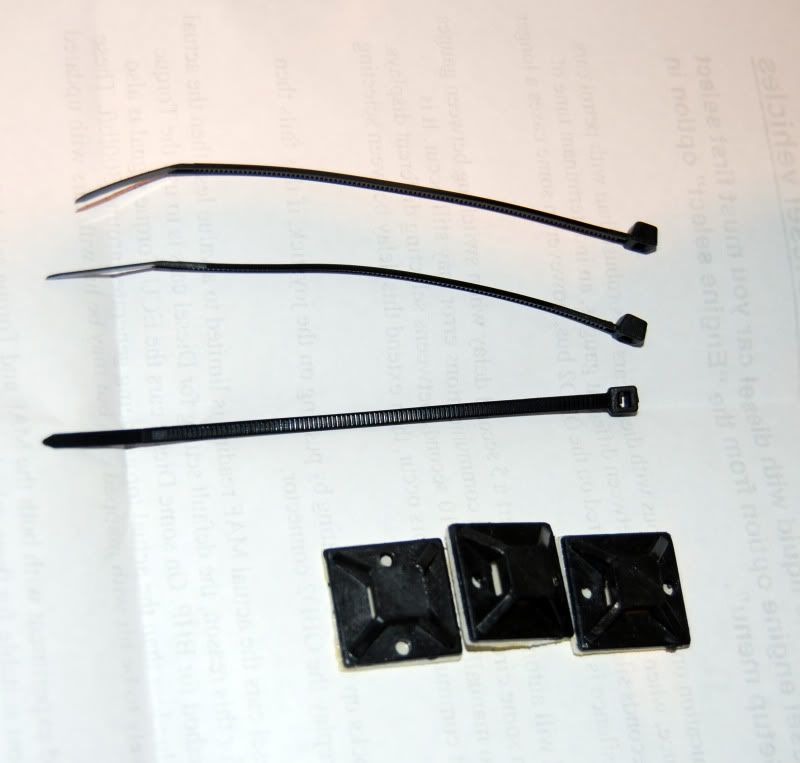

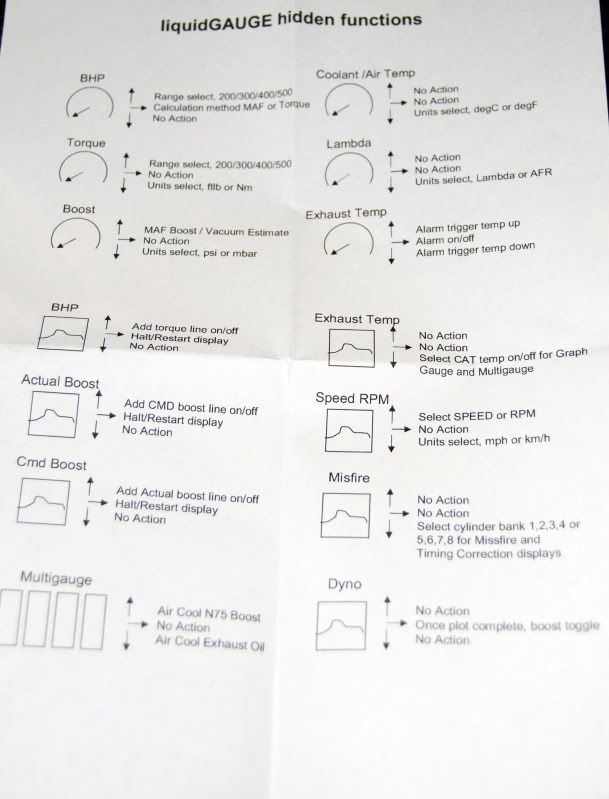

Comes with Password, Instructions / User guides, fitting advice. Brilliantly packaged and delivered in no time as well! Can't wait to fit it!
Oh yeah, also got a SEAT tax holder as well
#45: Re: Ape's SEAT Leon Cupra R 225 Author: Ape, Location: Clipping the Apex!Posted: Sat Feb 27, 2010 5:42 am ---- Ashtray and Cigarette Lighter removed for Access
Under the Dash
Lower dash panel removed and vent removed ready to receive Gauge
Wire Aperture cut through vent duct, and Wire threaded through
All hooked up and ready to go into final position
Gauge Connected up and ready to go in
Tidying the OBDII Wires using the Fuse/Relay Plate and another bracket which holds something else
Gauge Fitted and Powered up insitu
It took a fair bit of sanding, and removing the vent slat's wasn't too pretty. I used some of the bubblewrap packing as a heatshield in the vent and packed it tight. The Gauge is brilliant, accurate and easy to use. Bhp measured at 230bhp, with torque at 234lb ft, will see at the P Torque Rolling Road day how it compares against a Rolling Road etc. Boost peaked at 16.something psi, oil temperature stayed at around 90. The only fault code I got was regarding the N249 which I've bypassed so no problems there. My only gripe with it is the multi graph - seems to have a problem with it and after a short while it resets its communication due to an error. Being able to reset the Throttle Body through it is a nice touch also.
All in all, very pleased with it, not too hard to install and it isn't too distracting whilst driving either. Top product!
