#1: Harness Help please Author: Zack, Location: NorthamptonshirePosted: Tue Mar 12, 2013 1:54 pm ---- Just got a trs harness and the loop things dont fit its the wrong thread.
Where can i get some from or has anyone got some going please.
Cheers
#2: Re: Harness Help please Author: spike_202, Location: West midsPosted: Tue Mar 12, 2013 2:01 pm ---- Wrong thread? What size/pitch did you get?
#3: Re: Harness Help please Author: Zack, Location: NorthamptonshirePosted: Tue Mar 12, 2013 2:03 pm ---- says 8.8 on them
#4: Re: Harness Help please Author: MrBSI, Location: What's it to you? ? ?Posted: Tue Mar 12, 2013 2:27 pm ----
Zack wrote:
says 8.8 on them
That's the strength of the material
#5: Re: Harness Help please Author: Zack, Location: NorthamptonshirePosted: Tue Mar 12, 2013 2:44 pm ----
MrBSI wrote:
Zack wrote:
says 8.8 on them
That's the strength of the material
HAHAHA just show dont it this is my first harness and cant even put the thing in!!
#6: Re: Harness Help please Author: SinfulDesignCom, Location: Ashford, KentPosted: Tue Mar 12, 2013 3:32 pm ---- These will fit the thread at the sills, but not at the chair points. The pitch is not fine enough. These will be a 1.5mm pitch and you need 1.00 or 1.25. I forget which. I have paperwork somewhere, but that would be like trying to find a fart in a jacuzzi...
#7: Re: Harness Help please Author: Zack, Location: NorthamptonshirePosted: Tue Mar 12, 2013 3:50 pm ---- Where can I get some please please help
#8: Re: Harness Help please Author: SinfulDesignCom, Location: Ashford, KentPosted: Tue Mar 12, 2013 3:59 pm ---- gimme an hour or so and I will be home and dig out the invoice and tell you exactly what and where...
#9: Re: Harness Help please Author: Zack, Location: NorthamptonshirePosted: Tue Mar 12, 2013 4:18 pm ---- Ok thanks. Just reading your GTI 180 Track Project Thread and it says i need a 4 point harness mine is only a 3 :/
cheers
#10: Re: Harness Help please Author: SinfulDesignCom, Location: Ashford, KentPosted: Tue Mar 12, 2013 4:20 pm ---- 3 point is ok, but i have 4 points given the use of the car - where are you anchoring your three points?
#11: Re: Harness Help please Author: Zack, Location: NorthamptonshirePosted: Tue Mar 12, 2013 4:33 pm ---- One on the bolt near seal on right side other on the seat belt bit left. and third dont no :/ What would you say?
cheers
#12: Re: Harness Help please Author: spike_202, Location: West midsPosted: Tue Mar 12, 2013 5:15 pm ---- I have mine 1st on the exhaust tunnel (welded in place both sides) 2nd on the standard point by the door (rear footwell) and 3rd one goes to the back quarter panel point. it is within the guidelines of we're you should have it as seen in this pic
I hope this isent your day to day car your putting these into? Mine are quick-release ones that I can take in and out as they are really quite dangerous on road as you can't move in your seat to see around you or move to look at junctions.
#13: Re: Harness Help please Author: SinfulDesignCom, Location: Ashford, KentPosted: Tue Mar 12, 2013 5:34 pm ---- Ok - first up - what I said - its the other way round. Its the finer pitch you will have which is standard 1.25. You need M10 x 1.5mm pitch. I got them from motorsport-tools.com - part number MSTGE50AMX at 2 squid a piece.
Second, as you only have one rear anchor point, you will need to, ideally, put in a plate on the floor at the back as the pre-drilled seat belt holes at the back will pull the strap out of line. The other two points at the front are fine.
If you need to pass regs, then you will need to do as Spike mentions and not use the mount on the seat and weld a plate to the exhaust tunnel, but for road/track, the existing seat mount is acceptable.
#14: Re: Harness Help please Author: SinfulDesignCom, Location: Ashford, KentPosted: Tue Mar 12, 2013 5:38 pm ----
spike_202 wrote:
I hope this isent your day to day car your putting these into? Mine are quick-release ones that I can take in and out as they are really quite dangerous on road as you can't move in your seat to see around you or move to look at junctions.
#15: Re: Harness Help please Author: spike_202, Location: West midsPosted: Wed Mar 13, 2013 4:34 am ---- I wouldn't recommend fixing it to the seat/frame as if worst was to happen and you crash and you seat gets dislodged… your attached to it! Best to do I right 1st time. ill upload some photos later for you how mine is fitted with a 3point system. Matts 4point is also correct way as he has a Y strap that converts 3-4 point but if you've already got the 3point then you'll wanna go the way I did.
#16: Re: Harness Help please Author: Zack, Location: NorthamptonshirePosted: Wed Mar 13, 2013 4:48 am ----
spike_202 wrote:
I wouldn't recommend fixing it to the seat/frame as if worst was to happen and you crash and you seat gets dislodged… your attached to it! Best to do I right 1st time. ill upload some photos later for you how mine is fitted with a 3point system. Matts 4point is also correct way as he has a Y strap that converts 3-4 point but if you've already got the 3point then you'll wanna go the way I did.
Thanks that would be a big help.
#17: Re: Harness Help please Author: Zack, Location: NorthamptonshirePosted: Wed Mar 13, 2013 4:55 am ---- I also ordered these www.demon-tweeks.co.uk...mp-eyebolt
#18: Re: Harness Help please Author: Zack, Location: NorthamptonshirePosted: Wed Mar 13, 2013 10:52 am ---- Anyone
#19: Re: Harness Help please Author: SinfulDesignCom, Location: Ashford, KentPosted: Wed Mar 13, 2013 11:06 am ---- Thats the stuff!
#20: Re: Harness Help please Author: Zack, Location: NorthamptonshirePosted: Wed Mar 13, 2013 1:21 pm ---- Lush thanks.
#21: Re: Harness Help please Author: Zack, Location: NorthamptonshirePosted: Thu Mar 14, 2013 1:32 pm ---- Dont fit!!!! help please

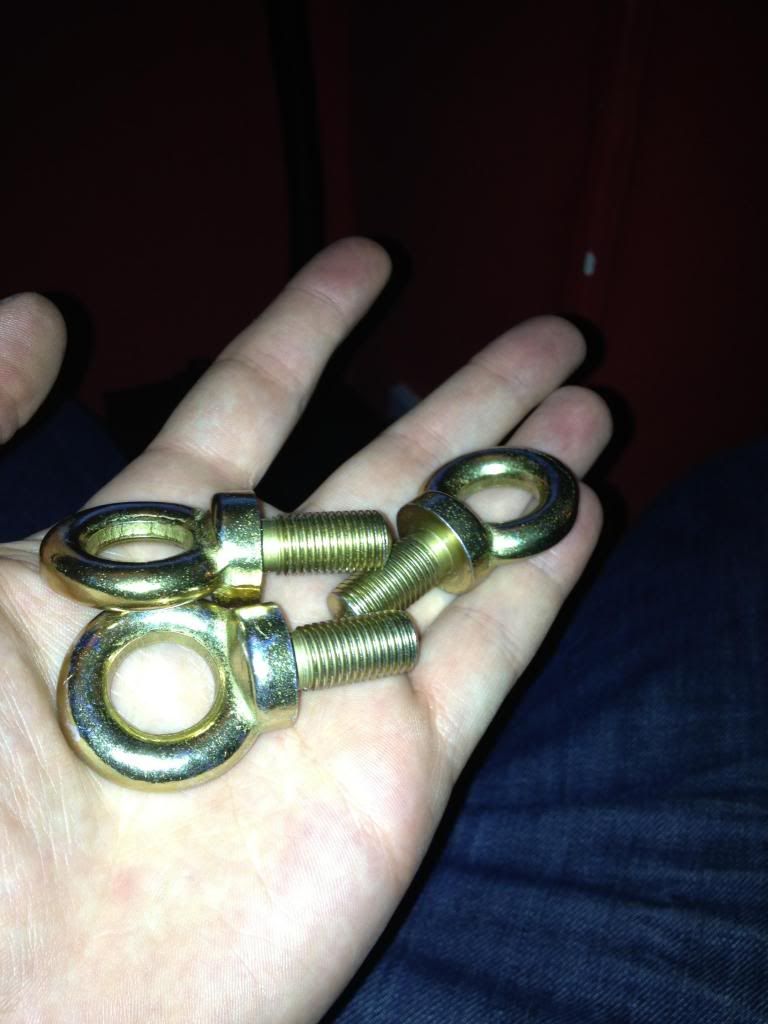

#22: Re: Harness Help please Author: Zack, Location: NorthamptonshirePosted: Thu Mar 14, 2013 1:54 pm ---- Here is what i have and what i need iv spend £20.00 so far and got no where woop.
#23: Re: Harness Help please Author: MrBSI, Location: What's it to you? ? ?Posted: Thu Mar 14, 2013 2:02 pm ---- Wrong thread.
#24: Re: Harness Help please Author: Zack, Location: NorthamptonshirePosted: Thu Mar 14, 2013 2:13 pm ---- Yea i need 1.25 im getting f**ked off now. does any one have a link?
#25: Re: Harness Help please Author: Zack, Location: NorthamptonshirePosted: Thu Mar 14, 2013 2:31 pm ---- www.sportseats4u.co.uk..._1887.html
boom
#26: Re: Harness Help please Author: SinfulDesignCom, Location: Ashford, KentPosted: Thu Mar 14, 2013 2:53 pm ---- Why is that tweeks link showing a UNF?? It wasn't the other day I'm sure.
Why did you not use the first link I sent? You should have the 1.25 as they are considered the "standard".
Go to a garage and get an M10 nut and establish which thread you need. I did this a few months ago - this is the quickest and easiest way of getting it right first, or second time in your case....
#27: Re: Harness Help please Author: Zack, Location: NorthamptonshirePosted: Thu Mar 14, 2013 2:59 pm ---- Yea good plan
#28: Re: Harness Help please Author: Zack, Location: NorthamptonshirePosted: Sat Mar 16, 2013 1:29 pm ---- Fitted
#29: Re: Harness Help please Author: SinfulDesignCom, Location: Ashford, KentPosted: Sat Mar 16, 2013 1:49 pm ---- good stuff - put some pics up so this topic will help future users in your situation if you can
#30: Re: Harness Help please Author: Zack, Location: NorthamptonshirePosted: Sat Mar 16, 2013 1:50 pm ---- Will do tomorrow
