OK,

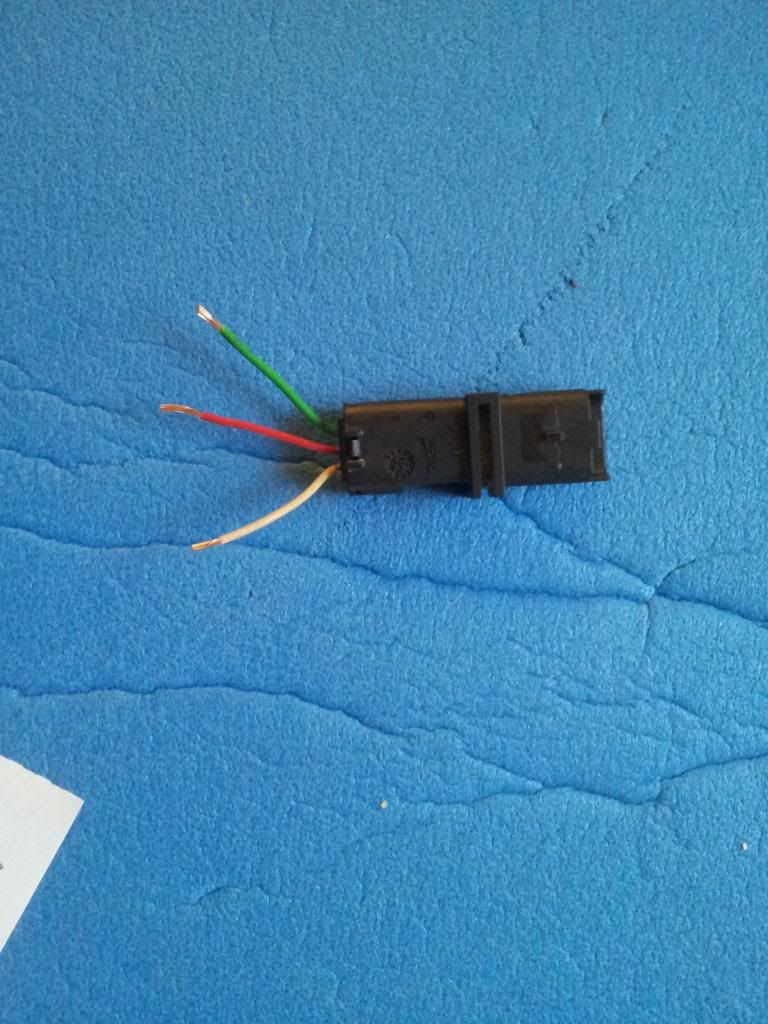

3 wires..Red ...White.....Green.
Dip light on give a circuit across Red+White and Green+white.
Main light on gives a circuit across Red+Green and White+Green
Which is the live feed for Dip and which is the live feed for Main?
| |  |
|
|
 |
|
|
|
|
|
|
Posted: Wed Feb 06, 2013 2:49 pm |
|
|
|
|
Joined: Nov 02, 2012
Posts: 218
Trade Rating: +1
Location: Plymouth
|
|
Come on guys, 34 reads but no answer.
If I had a multi-meter I could probably figure it out but only having a bulb and some wires I can only test pairs of wires for a circuits.
I have a feeling that the live feed for dip beam is the White and the live feed for the main beam is the Red, leaving the Green cable as a neg.
| | |
|
|
|
|
